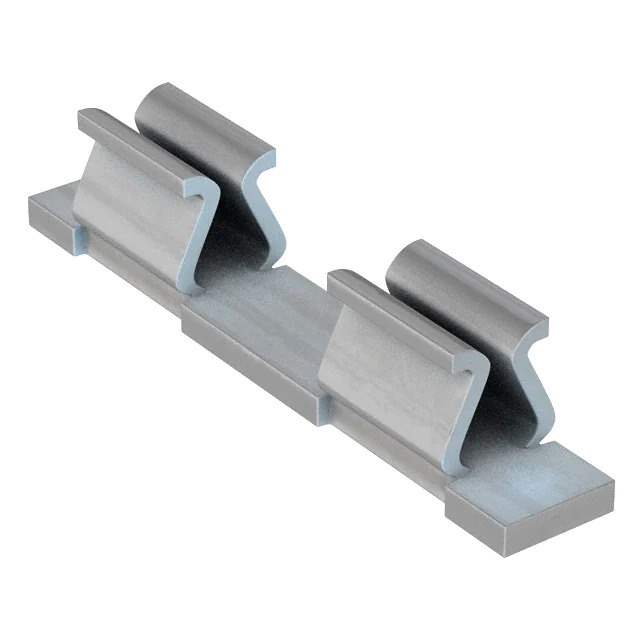

S1001-46R Real Image
Same model may have multiple batches, images only for reference.

S1001-46R

Part No S1001-46R
Manufacturer Harwin Inc.
Catalog RFI and EMI - Contacts, Fingerstock and Gaskets
Description RFI SHIELD CLIP MICRO TIN SMD
Datasheet
S1001-46R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RFI and EMI - Contacts, Fingerstock and Gaskets
Mfr Harwin Inc.
Package Tape & Reel
Product Status Active
Type Shield Clip
Width 0.024" (0.60mm)
Length 0.177" (4.50mm)
Height 0.035" (0.90mm)
Material Stainless Steel
Plating Tin
Plating - Thickness 118.11µin (3.00µm)
Attachment Method Solder
Temperature Range - Operating -25°C ~ 150°C
Storage/Refrigeration Temperature -4°F ~ 185°F (-40°C ~ 85°C)
Base Product Number S1001
Standard Package 20,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 852420-S1001-46R
Ultra Librarian 3D Model Ultra Librarian S1001-46R CAD Model

Description

The S1001-46R shield clip is a versatile component used in RF and wireless applications to provide electromagnetic interference (EMI) shielding.

  • Material: Stainless Steel
  • Plating: Tin
  • Length: 0.177"
  • Height: 0.035"
  • Width: 0.024"
  • Attachment: Solder
  • Temperature Range: -25°C to 150°C
