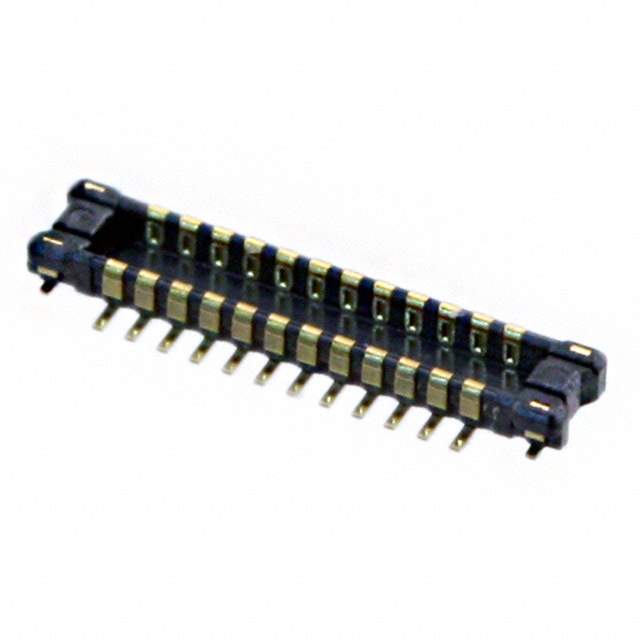

BM20B(0.8)-24DP-0.4V(51)

Part No BM20B(0.8)-24DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 24POS 0.4MM SMD
Datasheet
BM20B(0.8)-24DP-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1023695-BM20B(0.8)-24DP-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian BM20B(0.8)-24DP-0.4V(51) CAD Model

Description

The BM20B(0.8)-24DP-0.4V(51) connector from Hirose Electric Co Ltd is a 24-position, 0.40mm pitch, header connector with outer shroud contacts.

  • Number of Positions: 24
  • Pitch: 0.40mm
  • Type: Header Connector
  • Contact Type: Outer Shroud
  • Number of Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 2μin (0.05μm)
  • Mated Stacking Height: 0.8mm
  • Height Above Board: 0.65mm
  • Mounting: Surface-mounted
  • Application: Interconnect
