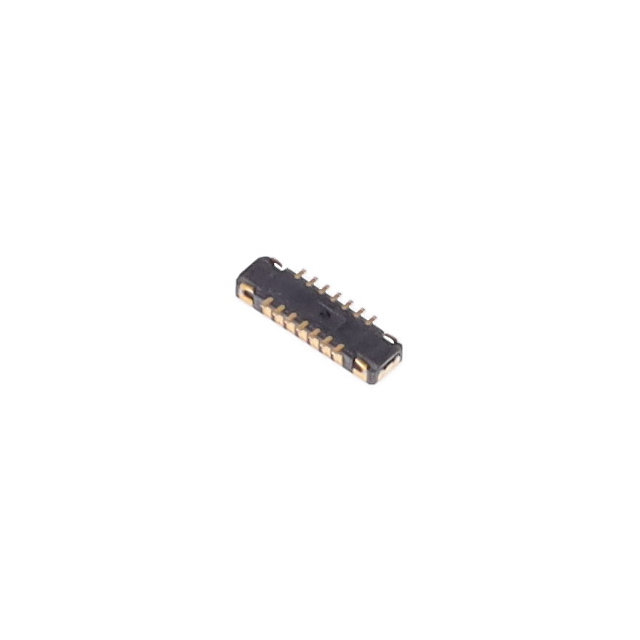

BM23PF0.8-14DP-0.35V(51) Real Image
Same model may have multiple batches, images only for reference.

BM23PF0.8-14DP-0.35V(51)

Part No BM23PF0.8-14DP-0.35V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
BM23PF0.8-14DP-0.35V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM23
Package Tape & Reel (TR)
Connector Type Header, Outer Shroud Contacts
Number of Positions 14
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.8mm
Height Above Board 0.025" (0.63mm)
Base Product Number BM23PF0.8
Other Names 480-0366-0-51
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294016-BM23PF0.8-14DP-0.35V(51)
Ultra Librarian 3D Model Ultra Librarian BM23PF0.8-14DP-0.35V(51) CAD Model

Description

The Hirose Electric Co Ltd BM23 series rectangular connector is a header connector with 14 positions and outer shroud contacts.

  • Series: BM23
  • Connector Type: Header
  • Contact Type: Outer Shroud Contacts
  • Positions: 14
  • Pitch: 0.014" (0.35mm)
  • Features: Solder Retention
  • Application: Board to board or Mezzanine
  • Mated Stacking Height: 0.8mm
  • Package: Tape and Reel
  • Package Quantity: 10,000
  • ECCN: EAR99
  • Other Names: 480-0366-0-51
