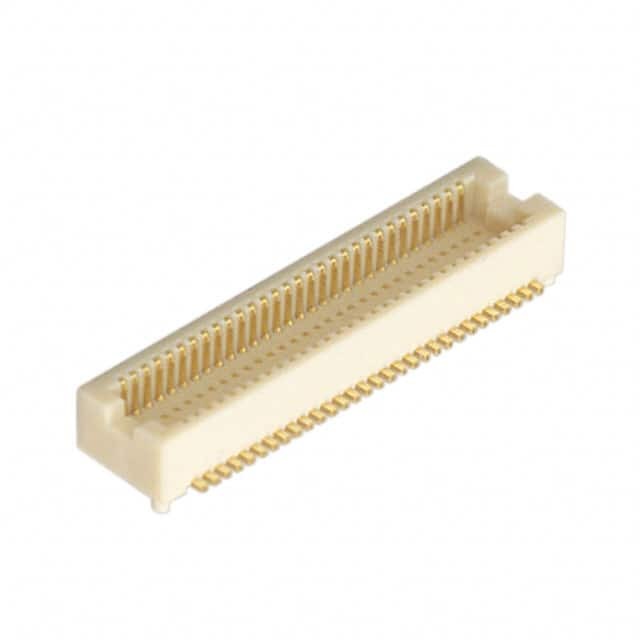

DF12D(3.0)-60DP-0.5V(81)
Same model may have multiple batches, images only for reference.

DF12D(3.0)-60DP-0.5V(81)

Part No DF12D(3.0)-60DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 60POS SMD GOLD / 60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm
Height Above Board 0.091" (2.30mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849079-DF12D(3.0)-60DP-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12D(3.0)-60DP-0.5V(81) CAD Model

Description

The DF12D(3.0)-60DP-0.5V(81) is an edge type rectangular connector from Hirose Electric Co Ltd.

  • Series: DF12
  • Application: Board-to-Board and Mezzanine
  • Positions: 60
  • Pitch: 0.020" (0.50mm)
  • Features: Board Guide
  • Connector Type: Header
  • Contact Type: Outer Shroud
  • Height Above Board: 0.091" (2.30mm)
  • Mated Stacking Height: 3mm
  • Mounting Type: Surface Mountable
  • Package: Tape and Reel
  • Pieces: 1,000
  • Product Status: Obsolete
