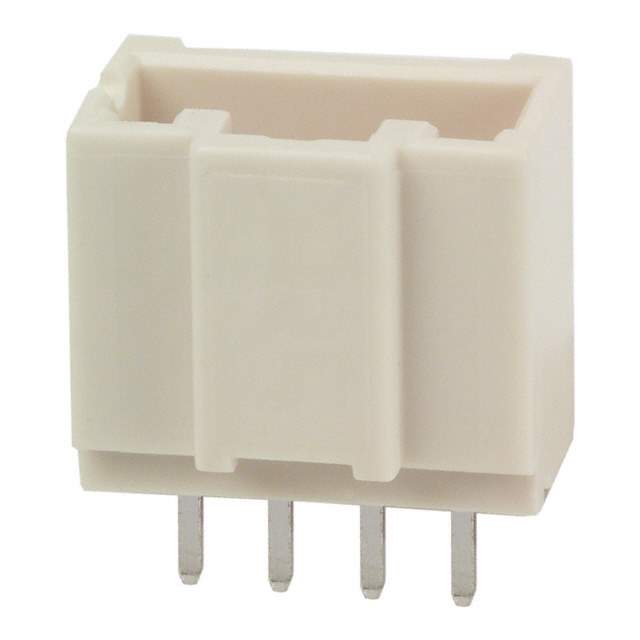

Same model may have multiple batches, images only for reference.

DF1EC-4P-2.5DSA

Name: DF1EC-4P-2.5DSA
Brand: Hirose Electric Co Ltd
SKU: 1337095
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DF1EC-4P-2.5DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.5MM / Connector Header Through Hole 4 position 0.098" (2.50mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF1E
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.425" (10.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Mated Stacking Heights	14.3mm, 15.8mm, 19.8mm
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337095-DF1EC-4P-2.5DSA
Ultra Librarian 3D Model	Ultra Librarian DF1EC-4P-2.5DSA CAD Model

Alternative Products

Description

The DF1E series header connector from Hirose Electric Co Ltd is a 4-position male pin connector designed for board-to-cable/wire applications.

Series: DF1E
Connector Type: Header, Male Pin
Number of Positions: 4
Mounting Type: Through Hole
Termination: Solder
Style: Shrouded 4-Wall
Contact Shape: Square
Contact Length (Mating): 0.177 inches
Contact Length (Post): 0.142 inches
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA) and Nylon
Pitch: 0.098 inches (2.50mm)
Current Rating: 3A
Operating Temperature: -35°C to 85°C
Flammability Rating: UL94 V-0
Packaging: Bulk
Mated Stacking Heights: 14.3mm, 15.8mm, and 19.8mm
Application: Board-to-Cable/Wire
