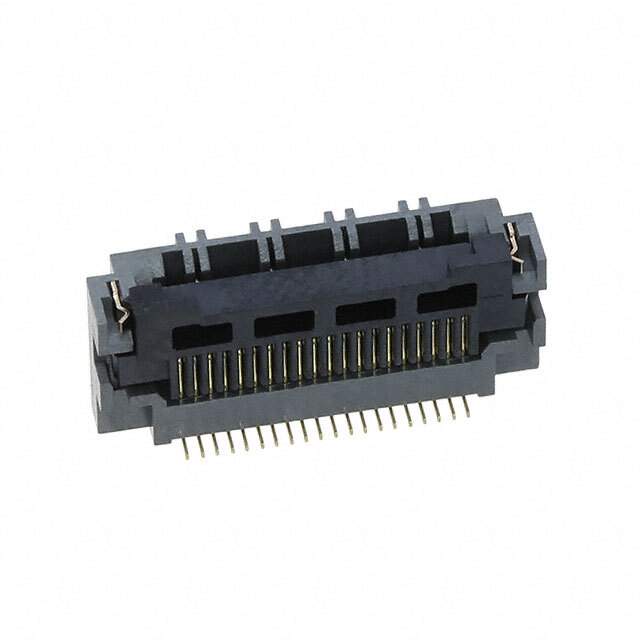

FH48-20S-0.5SV

Name: FH48-20S-0.5SV
Brand: Hirose Electric Co Ltd
SKU: 1333308
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FH48-20S-0.5SV
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC VERT 20POS 0.50MM SMD / 20 Position FFC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet	FH48-20S-0.5SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Flat Flex Type	FFC
Mounting	Surface Mount
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	20
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.243" (6.18mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Low Insertion Force (LIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Gray
Actuator Color	Black
Base Product Number	FH48
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	H125209TR,H125209CT,FH48-20S-0.5SV-ND,H125209DKR,580-3104-1-00
Standard Package	1,000
Win Source Part Number	1333308-FH48-20S-0.5SV
Ultra Librarian 3D Model	Ultra Librarian FH48-20S-0.5SV CAD Model

Description

The FH48-20S-0.5SV FFC/FPC connector assembly is manufactured by Hirose Electric Co Ltd.

Number of Positions: 20
Insertion Force: low insertion force (LIF)
Pitch: 0.020" (0.50mm)
Voltage Rating: 50V
Locking Feature: flip lock
Cable End Type: tabbed
Housing Material: liquid crystal polymer (LCP)
Halogen-Free: yes
Mounting Type: surface-mount
Operating Temperature: -40°C to 85°C
Height Above Board: 0.243" (6.18mm)
Flat Flex Type: FFC
Standard Package: 1,000
