Same model may have multiple batches, images only for reference.

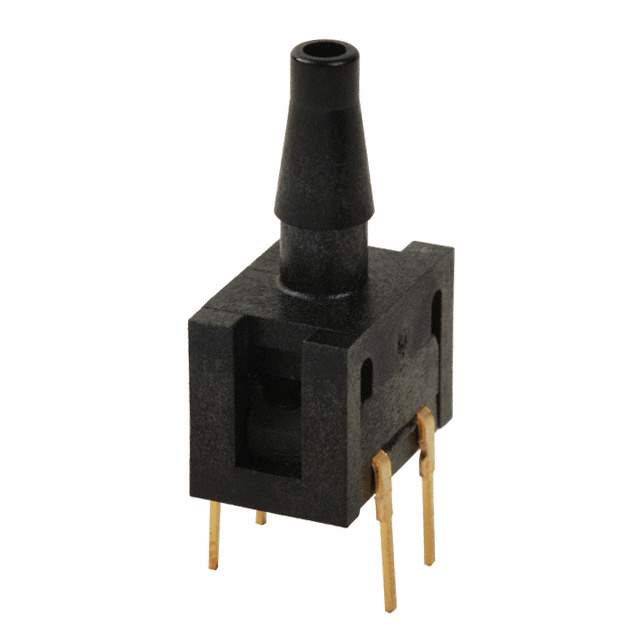

26PCBFB2G Real Image
Same model may have multiple batches, images only for reference.

26PCBFB2G

Part No 26PCBFB2G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS GAUGE +5.0PSI / Pressure Sensor ±5PSI (±34.47kPa) Compound Male - 0.18" (4.57mm) Tube 0 mV ~ 50 mV (10V) 4-SIP Module
Datasheet
26PCBFB2G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series 26PC
Package Bulk
Applications Board Mount
Pressure Type Compound
Operating Pressure ±5PSI (±34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV (10V)
Accuracy ±0.5%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.18" (4.57mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Base Product Number 26PCB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names Q3877250,480-2848
Standard Package 25
Win Source Part Number 1032650-26PCBFB2G
Ultra Librarian 3D Model Ultra Librarian 26PCBFB2G CAD Model

Description

The Honeywell Sensing and Productivity Solutions 26PCBFB2G pressure sensor is a high-quality electronic component that offers a pressure range of ±5PSI (±34.47kPa) and an output of 0mV to 50mV (10V).

  • Pressure Range: ±5PSI (±34.47kPa)
  • Output: 0mV to 50mV (10V)
  • Application: Pressure measurement and control
  • Mounting: Board mount
  • Output Type: Wheatstone bridge
  • Temperature Compensation: Yes
  • Accuracy: ±0.5%
  • Pressure Type: Compound
  • Port: Barbed male 0.18” (4.57mm) tube
  • Operating Temperature: -40°C to 85°C
