Same model may have multiple batches, images only for reference.

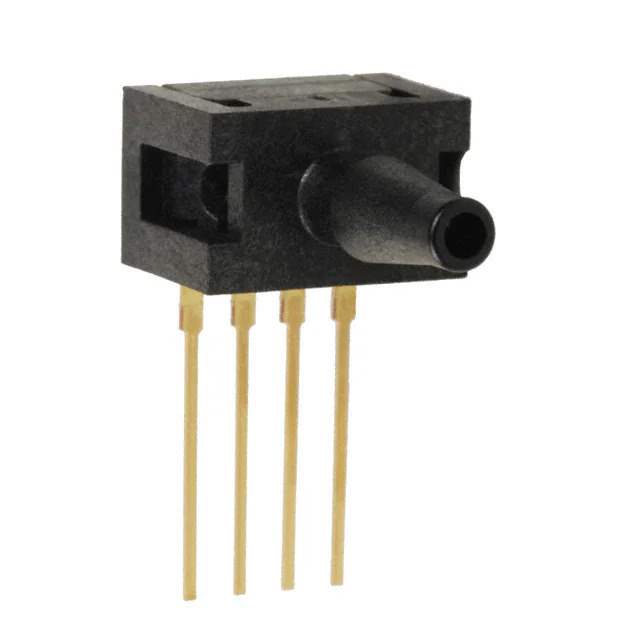

26PCBFB6G Real Image
Same model may have multiple batches, images only for reference.

26PCBFB6G

Part No 26PCBFB6G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSIC 0.18" .05V / Pressure Sensor ±5PSI (±34.47kPa) Compound Male - 0.18" (4.57mm) Tube 0 mV ~ 50 mV (10V) 4-SIP Module
Datasheet
26PCBFB6G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC
Package Tray
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±5PSI (±34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV (10V)
Accuracy ±0.5%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.18" (4.57mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number 26PCB
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 906103-26PCBFB6G
Ultra Librarian 3D Model Ultra Librarian 26PCBFB6G CAD Model

Description

The 26PCBFB6G is a pressure sensor designed for board mount applications.

  • Output: Temperature compensated
  • Output Type: Wheatstone bridge
  • Pressure Type: Compound
  • Operating Pressure Range: ±5PSI (±34.47kPa)
  • Port Size: 0.18" (4.57mm) tube (male)
  • Port Style: Barbed
  • Maximum Pressure: ±20PSI (±137.9kPa)
  • Voltage Supply: 2.5V to 16V
  • Mounting Type: Through-hole
  • Package: 4-SIP module
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Honeywell
  • Series: 26PC
