Same model may have multiple batches, images only for reference.

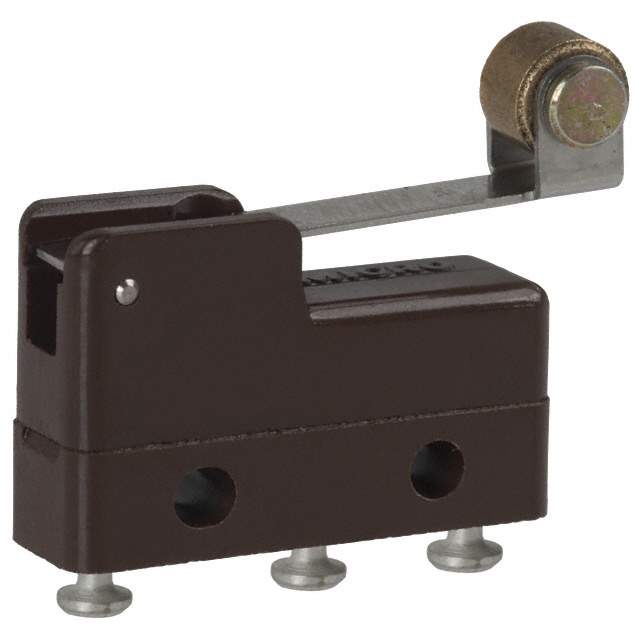

311SM6-T

Name: 311SM6-T
Brand: Honeywell
SKU: 1323863
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	311SM6-T
Manufacturer	Honeywell
Catalog	Snap Action, Limit Switches
Description	SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT Chassis Mount
Datasheet	311SM6-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Limit Switches
Manufacturer	Honeywell Sensing and Productivity Solutions
Packaging	Tray
Circuit	SPDT
Switch Function	On-Mom
Current Rating (Amps)	5A (AC/DC)
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V
Actuator Type	Lever, Roller
Mounting	Chassis Mount
Termination Style	Solder Turret
Operating Force	40gf
Release Force	7.138gf
Pretravel	0.085" (2.16mm)
Differential Travel	0.020" (0.5mm)
Overtravel	0.018" (0.45mm)
Temperature Range - Operating	-55°C ~ 125°C
Operating Position	0.560" (14.2mm)
Mechanical Life	10,000,000 Cycles
Base Product Number	311SM
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.7000
Other Part Number	480-2324,2266-311SM6-T,311SM6T
Standard Package	100
Win Source Part Number	1323863-311SM6-T
Ultra Librarian 3D Model	Ultra Librarian 311SM6-T CAD Model

Alternative Products

Description

The 311SM6-T limit switch from Honeywell is a SPDT switch that is perfect for chassis mounting applications.

Voltage Rating: 250V (AC) and 30V (DC)
Current Rating: 5A (AC/DC)
Switch Function: On-Mom
Actuator Type: lever, roller
Operating Force: 40gf
Mechanical Life: 10,000,000 cycles
Temperature Range: -55°C ~ 125°C
Package: tray
RoHS Compliant: true
