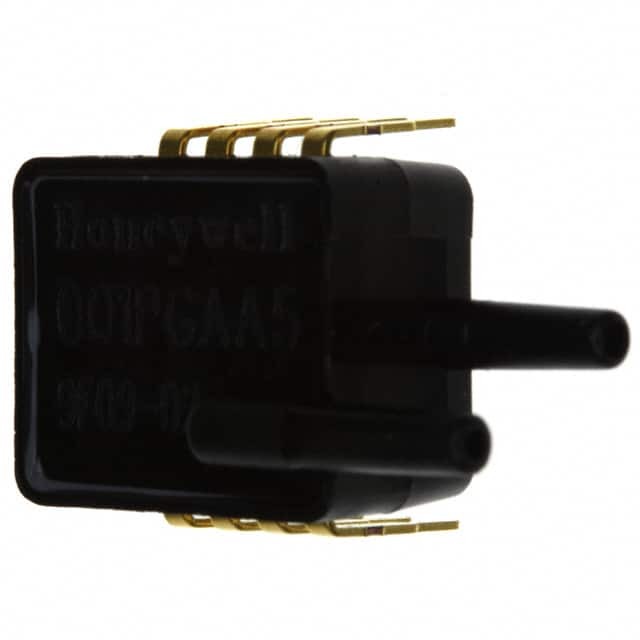

Same model may have multiple batches, images only for reference.
ASDXRRX001PGAA5
Same model may have multiple batches, images only for reference.

ASDXRRX001PGAA5

Part No ASDXRRX001PGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 1PSIG 0.09" 4.5V
Datasheet
ASDXRRX001PGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series ASDX
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1PSI (6.89kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±2%
Voltage - Supply 4.75 ~ 5.25V
Port Size Male - 0.09" (2.31mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 2PSI (13.79kPa)
Temperature Range - Operating -20°C ~ 105°C
Mounting Type Through Hole
Package / Case 8-DIP Module
Base Product Number ASDXRRX001
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 845411-ASDXRRX001PGAA5
Ultra Librarian 3D Model Ultra Librarian ASDXRRX001PGAA5 CAD Model

Description

The 845411-ASDXRRX001PGAA5 is a Pressure Sensor manufactured by Honeywell.

  • Category: Sensors, Transducers
  • Designed for: pressure measurement
  • Series: ASDX
  • Termination Style: PC Pin
  • Features: temperature compensation
  • Package: bulk
  • Applications: board mount
  • Standard Package: 25 pieces
  • Output Type: analog voltage with a range of 0.5V to 4.5V.
  • Accuracy: ±2 percent.
  • Pressure Type: vented gauge
  • Operating Pressure: 1 PSI (6.89kPa)
  • Port Size: male with a tube diameter of 0.09" (2.31mm)
  • Port Style: dual port style
  • Maximum Pressure: 2 PSI (13.79kPa)
  • Voltage Supply: 4.75V to 5.25V
  • Mounting Type: through hole
  • Package/Case: 8-DIP module
  • Operating Temperature: -20°C to 105°C
  • HTSUS code: 9026.20.4000
  • Status: active product.
