Same model may have multiple batches, images only for reference.

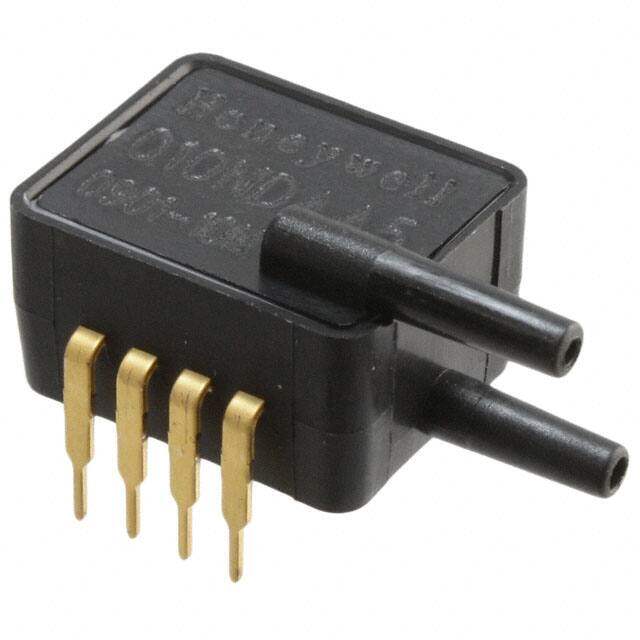

ASDXRRX010NDAA5 Real Image
Same model may have multiple batches, images only for reference.

ASDXRRX010NDAA5

Part No ASDXRRX010NDAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 0.36PSID 0.09" 4.5V
Datasheet
ASDXRRX010NDAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series ASDX
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.36PSI (±2.49kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±2%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.09" (2.31mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±0.72PSI (±4.96kPa)
Temperature Range - Operating -20°C ~ 105°C
Mounting Type Through Hole
Package / Case 8-DIP Module
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 846836-ASDXRRX010NDAA5
Ultra Librarian 3D Model Ultra Librarian ASDXRRX010NDAA5 CAD Model

Description

The Honeywell ASDX Series Pressure Sensors are high-quality sensors designed for accurate pressure measurements.

  • Termination Style: PC Pin
  • Features: temperature compensation
  • Output Type: analog voltage, ranging from 0.5 V to 4.5 V
  • Accuracy: ±2%
  • Voltage Supply: 4.75V to 5.25V
  • Pressure Range: ±0.36PSI (±2.49kPa) to ±0.72PSI (±4.96kPa)
