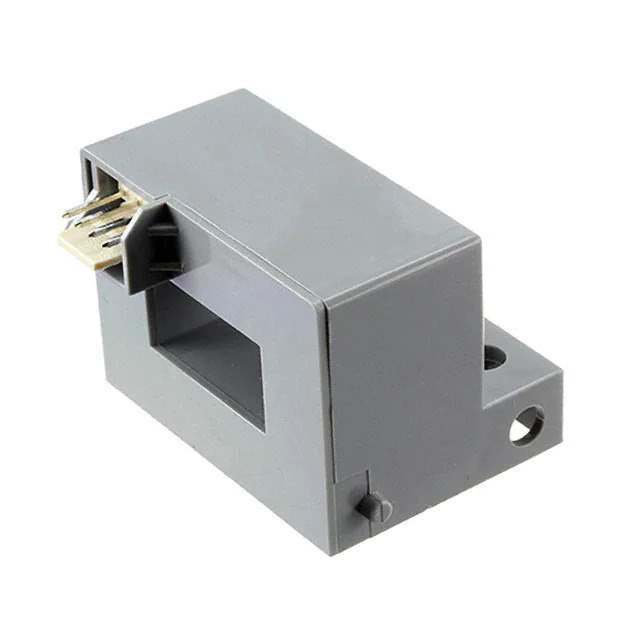

CSCA0100A000B15B01 Real Image
Same model may have multiple batches, images only for reference.

CSCA0100A000B15B01

Part No CSCA0100A000B15B01
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Datasheet
CSCA0100A000B15B01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Honeywell
Series CSCA-A
Package Bulk
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 50kHz
Linearity ±1%
Accuracy ±2%
Voltage - Supply ±15V
Response Time 3µs
Current - Supply (Max) 17mA
Temperature Range - Operating -10°C ~ 80°C
Polarization Bidirectional
Mounting Type Chassis Mount
Package / Case Module
Base Product Number CSCA0100
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 580823-CSCA0100A000B15B01
Ultra Librarian 3D Model Ultra Librarian CSCA0100A000B15B01 CAD Model

Description

The Honeywell CSCA0100A000B15B01 is a current sensor designed for measuring AC/DC currents.

  • Sensor Type: Hall effect, open loop
  • Current Sensing Range: 100A
  • Output: Ratiometric, voltage
  • Frequency Range: DC to 50kHz
  • Sensitivity: ±1%
  • Accuracy: ±2%
  • Voltage Supply: ±15V
  • Maximum Current Supply: 17mA
  • Mounting: Chassis mountable
  • Operating Temperature: -10°C to 80°C
  • Applications: Power monitoring, motor control, and energy management systems.
