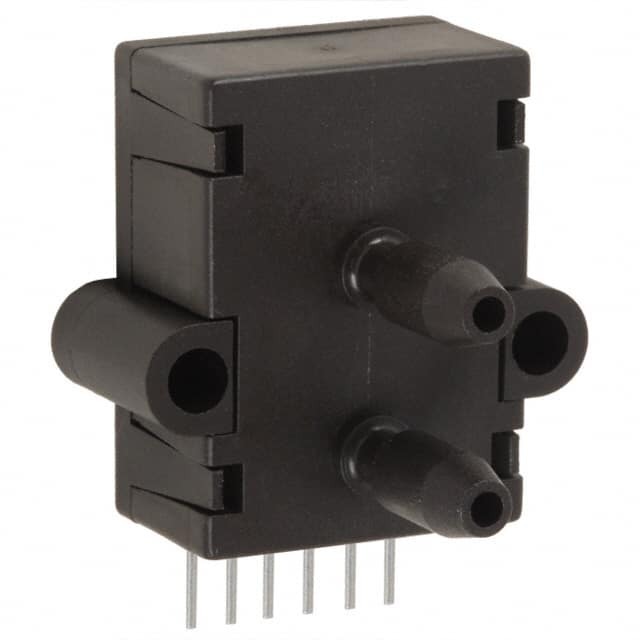

Same model may have multiple batches, images only for reference.
DCXL01DS
Same model may have multiple batches, images only for reference.

DCXL01DS

Part No DCXL01DS
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 0.04PSID 0.19" .01V / Pressure Sensor 0.04PSI (0.25kPa) Differential Male - 0.19" (4.83mm) Tube, Dual 0 mV ~ 10 mV (12V) 6-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series DCXL-DS
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 0.04PSI (0.25kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 10 mV (12V)
Accuracy ±0.25%
Voltage - Supply 3V ~ 16V
Port Size Male - 0.19" (4.83mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 5PSI (34.47kPa)
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Through Hole
Package / Case 6-SIP Module
Standard Package 5 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 868278-DCXL01DS
Ultra Librarian 3D Model Ultra Librarian DCXL01DS CAD Model

Description

The 868278-DCXL01DS is a pressure sensor designed and manufactured by Honeywell.

  • Series: DCXL-DS
  • Termination Style: PC pin
  • Temperature Compensated: Yes
  • Package: Tube
  • Standard Package: 5 pieces
  • Applications: Designed for board mount applications
  • Output Type: Wheatstone bridge
  • Output Voltage Range: 0mV to 10mV
  • Supply Voltage: 12V
  • Accuracy: ±0.25%
  • Pressure Range: 0.04PSI
  • Dual Port Size: 0.19"
  • Connection: Barbed for easy connection
  • Maximum Pressure: 5PSI
  • Voltage Supply Range: 3V to 16V
  • Temperature Range: -25°C to 85°C
  • Status: Obsolete, but still available in the market.
