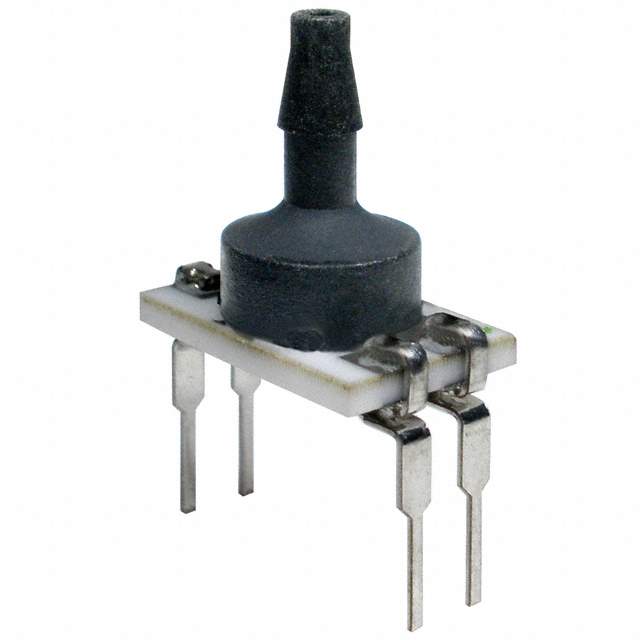

NBPDANN100PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPDANN100PGUNV

Part No NBPDANN100PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 100PSI GAUG 12V DIP / Pressure Sensor 0psi to 100psi Gage 4-Pin DIP
Datasheet
NBPDANN100PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 100 PSI (689.48 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 86 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.08" (1.91mm) Tube
Port Style Barbed
Termination Style PC Pin
Maximum Pressure 240 PSI (1654.74 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-DIP (0.453", 11.50mm), Top Port
Win Source Part Number 790531-NBPDANN100PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPDANN100PG
Introduction Date June 29, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPDANN100PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBP series pressure sensor is a vented gauge pressure sensor that operates at a pressure of 100 PSI and has a maximum pressure of 240 PSI.

  • Port Size: Male 0.08" tube
  • Port Style: Barbed
  • Supply Voltage: 1.8 V to 12 V
  • Output: 0 mV to 86 mV (5V)
  • Accuracy: ±0.25%
  • Output Type: Wheatstone bridge
  • Estimated EOL Date: 2031
  • Package: 4-DIP (0.453", 11.50mm) top port
