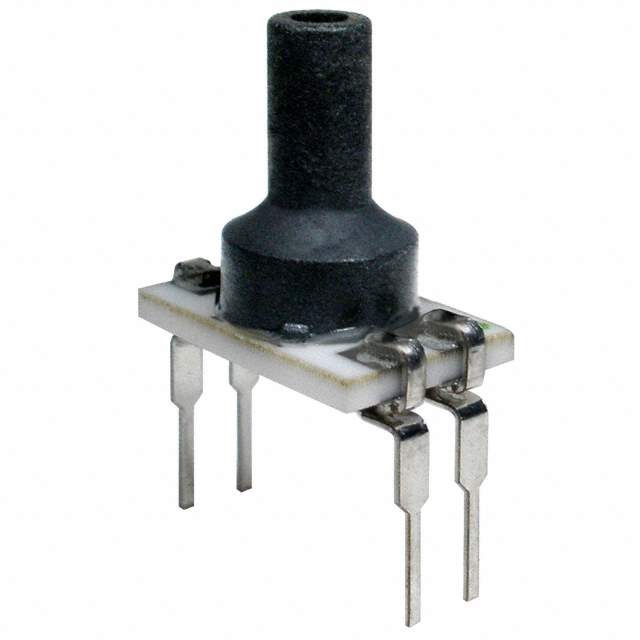

NBPDLNN005PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPDLNN005PGUNV

Part No NBPDLNN005PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BASIC MODEL DIP SINGLE AXIAL / Pressure Sensor 0psi to 5psi Gage 4-Pin DIP
Datasheet
NBPDLNN005PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 5 PSI (34.47 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.13" (3.18mm) Tube
Port Style Barbless
Termination Style PC Pin
Maximum Pressure 30 PSI (206.84 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-DIP (0.453", 11.50mm), Top Port
Win Source Part Number 790534-NBPDLNN005PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPDLNN005PGUNV
Introduction Date March 11, 2013
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian NBPDLNN005PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBPDLNN005PGUNV is a pressure sensor from the NBP series.

  • Output Type: Wheatstone Bridge
  • Pressure Type: Vented Gauge
  • Output: 0mV to 75mV (5V)
  • Accuracy: ±0.25%
  • Operating Temperature: -40°C to 125°C
  • Supply Voltage: 1.8V to 12V
  • Package: 4-DIP (0.453", 11.50mm)
  • Termination: Top port
