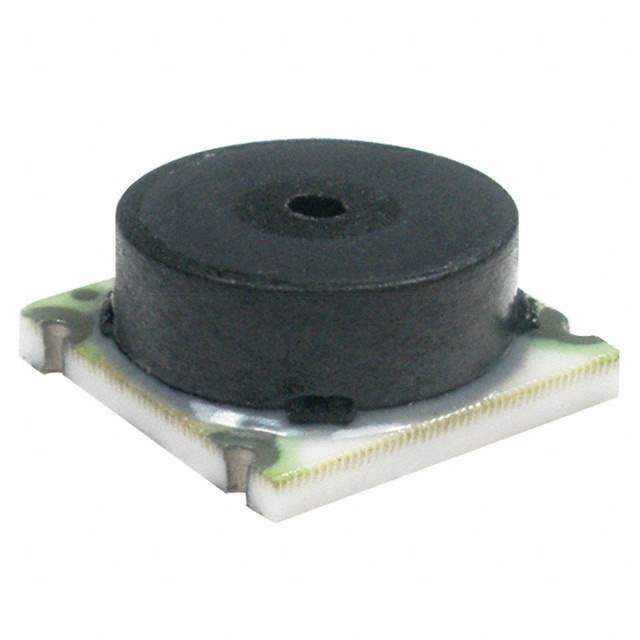

NBPLPNN005PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPLPNN005PGUNV

Part No NBPLPNN005PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS
Datasheet
NBPLPNN005PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 5 PSI (34.47 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Style No Port
Termination Style Surface Mount
Maximum Pressure 30 PSI (206.84 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 6-SMD, No Lead, Top Port
Win Source Part Number 790544-NBPLPNN005PGUNV
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NBPLPNN005PGUNV CAD Model

Description

The Honeywell NBP Series Pressure Sensor is a surface-mount device used for pressure detection.

  • Package: 6-SMD, no lead, top port
  • Pressure Type: Vented Gauge
  • Operating Pressure: 5 PSI (34.47 kPa)
  • Maximum Pressure: 30 PSI (206.84 kPa)
  • Output Type: Wheatstone bridge
  • Operating Supply Voltage: 1.8V ~ 12V
  • Output: 0mV ~ 75mV (5V)
  • Accuracy: ±0.25%
  • Operating Temperature: -40°C ~ 125°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
