Same model may have multiple batches, images only for reference.

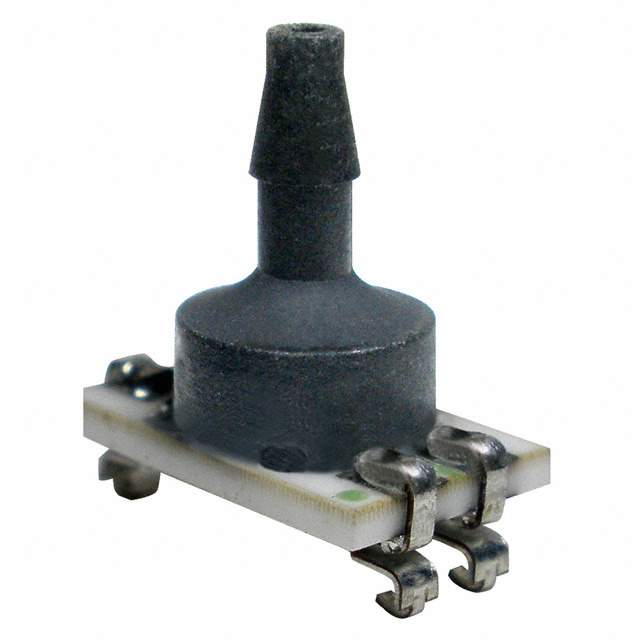

NBPMANS060MGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMANS060MGUNV

Part No NBPMANS060MGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 0psi to 60psi Gage 4-Pin SMT
Datasheet
NBPMANS060MGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 0.87 PSI (6 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 28.5 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.75" (1.91mm) Tube
Port Style Barbed
Termination Style Surface Mount (SMD,SMT)
Maximum Pressure 12.33 PSI (85 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-SMD, J-Lead, Top Port
Win Source Part Number 790551-NBPMANS060MGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPMANS060PG
Introduction Date June 29, 2012
Country of Origin China, Mexico, United States of America
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPMANS060MGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBPMANS060MGUNV is a pressure sensor from the NBP series.

  • Output Type: Wheatstone Bridge
  • Pressure Type: Vented Gauge
  • Output: 0mV to 28.5mV (5V)
  • Accuracy: ±0.25%
  • Operating Temperature: -40°C to 125°C
  • Supply Voltage: 1.8V to 12V
  • Package: 4-SMD, J-Lead, Top Port
