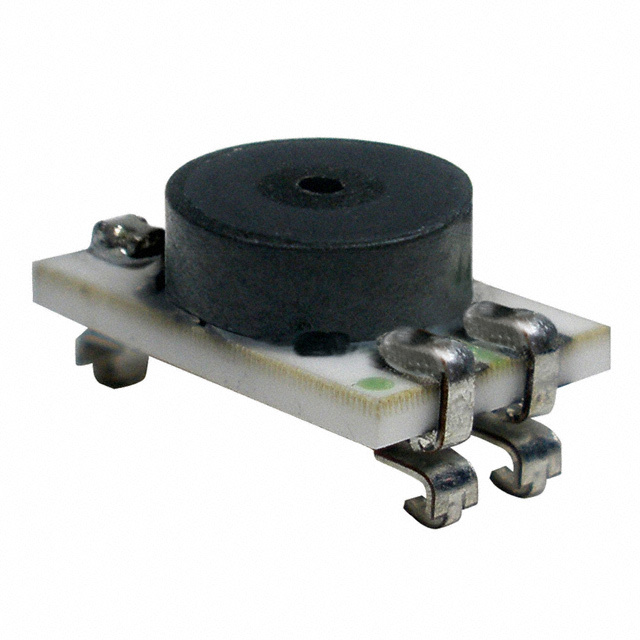

Same model may have multiple batches, images only for reference.
NSCDRRN005PDUNV Honeywell – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NSCDRRN005PDUNV

Part No NSCDRRN005PDUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSID 0.08\
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Board Mount
Pressure Type Differential
Operating Pressure ±5PSI (±34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.25%
Voltage - Supply 1.5V ~ 12V
Port Size Male - 0.08" (1.93mm) Tube, Dual
Port Style Barbed
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Case / Package 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
Supplier Device Package 8-DIP
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1600202-NSCDRRN005PDUNV
Ultra Librarian 3D Model Ultra Librarian NSCDRRN005PDUNV CAD Model

Description

N
