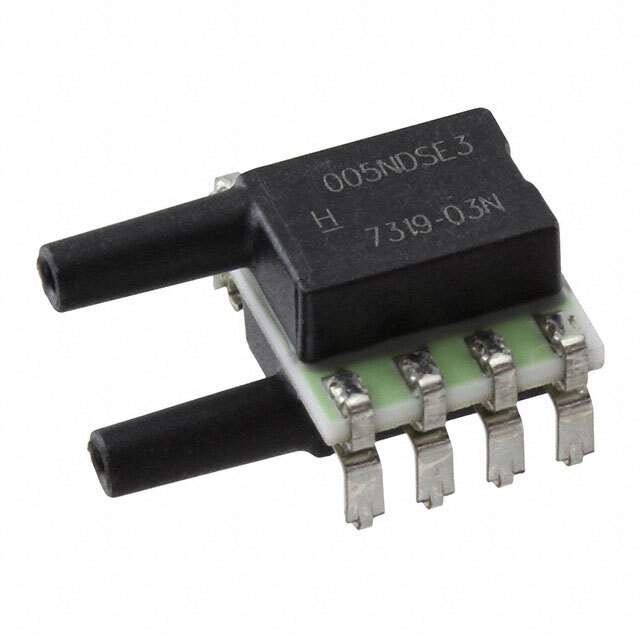

RSCMJJM005NDSE3 Real Image
Same model may have multiple batches, images only for reference.

RSCMJJM005NDSE3

Part No RSCMJJM005NDSE3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 5" H2OF 3.3V S  /  Pressure Sensor ±0.18PSI (±1.25kPa) Differential Male - 0.08" (1.93mm) Tube, Dual 24 b 8-SMD, J-Lead, Dual Ports, Same Side
Datasheet
RSCMJJM005NDSE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® RSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.18PSI (±1.25kPa)
Output Type SPI
Output 24 b
Accuracy ±0.1%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.08" (1.93mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style J Lead
Maximum Pressure ±5PSI (±34.47kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead, Dual Ports, Same Side
Supplier Device Package SMD
Base Product Number RSCMJJM005
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-6887,2266-RSCMJJM005NDSE3
Standard Package 50
Win Source Part Number 1013423-RSCMJJM005NDSE3
Ultra Librarian 3D Model Ultra Librarian RSCMJJM005NDSE3 CAD Model

Description

The RSCMJJM005NDSE3 is a pressure sensor produced by Honeywell Sensing and Productivity Solutions.

  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Product Name: RSCMJJM005NDSE3
  • Series: TruStability® RSC
  • Sensing Function: Differential Pressure
  • Port Style: Dual Port
  • Sensing Range: ±0.18PSI (±1.25kPa)
  • Maximum Pressure: ±5PSI (±34.47kPa)
  • Supply Voltage Range: 3V to 3.6V
  • Output Type: SPI with 24-bit output
  • Accuracy: ±0.1%
  • Temperature Range: -40°C to 85°C
  • Applications: Medical equipment, HVAC, and industrial controls
