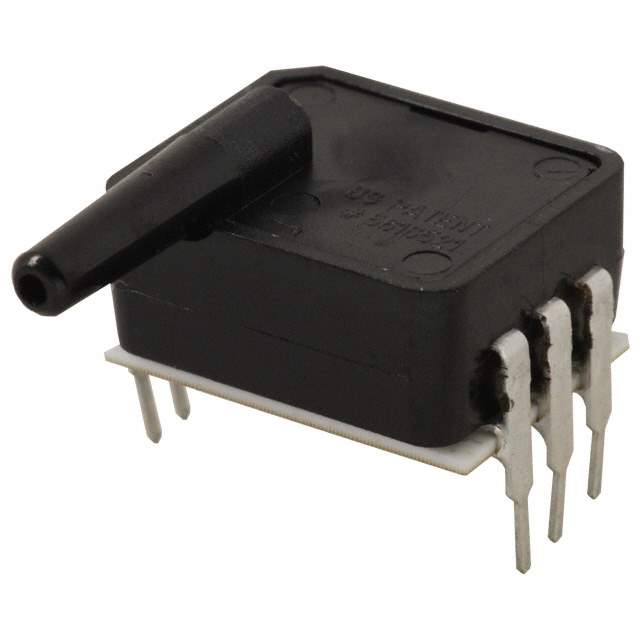

SDX15A4 Real Image
Same model may have multiple batches, images only for reference.

SDX15A4

Part No SDX15A4
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 15PSIA DIP / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.28mm) Tube 0 mV ~ 90 mV (12V) 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SDX
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.09" (2.28mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Other Names 287-1037,287-1037R,Q4773113
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234792-SDX15A4
Ultra Librarian 3D Model Ultra Librarian SDX15A4 CAD Model

Description

This SDX series pressure sensor from Honeywell Sensing and Productivity Solutions is a reliable and durable product.

  • Part Number: 1234792-SDX15A4
  • Output Type: Wheatstone Bridge
  • Temperature Compensated: Yes
  • Output: 0mV ~ 90mV (12V)
  • Accuracy: ±1%
  • Operating Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 30PSI (206.84kPa)
  • Voltage Supply: 20V
  • Termination Style: PC Pin
  • Package: Bulk
  • Package Quantity: 25
