Same model may have multiple batches, images only for reference.

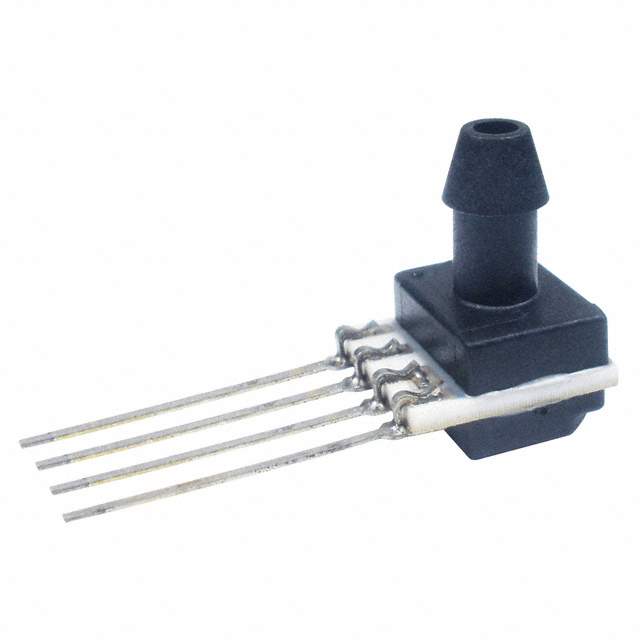

SSCSANN015PAAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSANN015PAAA5

Part No SSCSANN015PAAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI ABSO 5V SIP / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.93mm) Tube 0.5 V ~ 4.5 V 4-SIP, Side Port
Datasheet
SSCSANN015PAAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSANN
Other Names 480-3600,SSCSANN015PAAA5,2266-SSCSANN015PAAA5
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234736-SSCSANN015PAAA5
Ultra Librarian 3D Model Ultra Librarian SSCSANN015PAAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SSCSANN015PAAA5 is a TruStability® SSC pressure sensor designed for board mount applications.

  • Features: Amplified output, is temperature compensated
  • Pressure Type: Absolute
  • Port Size: Male 0.19" (4.93mm) tube
  • Port Style: Barbed
  • Maximum Pressure: 30PSI (206.84kPa)
  • Operating Pressure: 15PSI (103.42kPa)
  • Voltage Supply: 4.75V to 5.25V
  • Output Type: Analog Voltage
  • Standard Package: 50
  • Package: 4-SIP, side port case
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99 compliant
