Same model may have multiple batches, images only for reference.

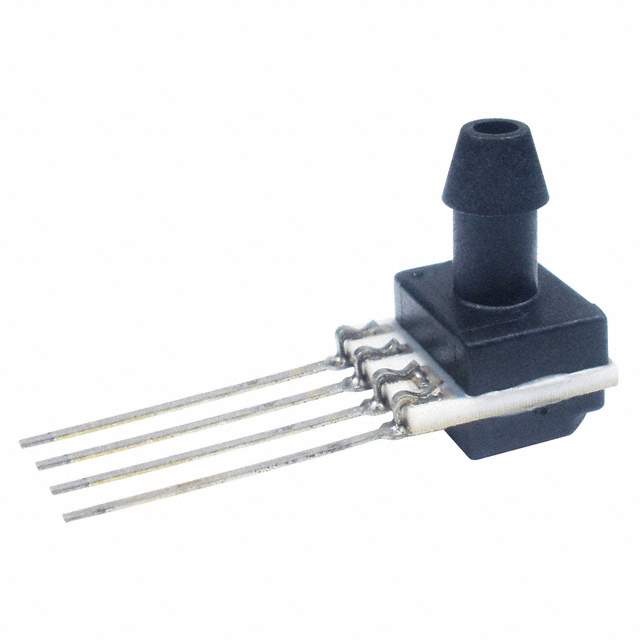

SSCSANN100PA2A5 Real Image
Same model may have multiple batches, images only for reference.

SSCSANN100PA2A5

Part No SSCSANN100PA2A5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 100PSI ABSO 5V SIP / Pressure Sensor 100PSI (689.48kPa) Absolute Male - 0.19" (4.93mm) Tube 12 b 4-SIP, Side Port
Datasheet
SSCSANN100PA2A5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 100PSI (689.48kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 250PSI (1723.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSANN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234761-SSCSANN100PA2A5
Ultra Librarian 3D Model Ultra Librarian SSCSANN100PA2A5 CAD Model

Description

The TruStability® SSC absolute pressure sensor is a high-performance device with an amplified output and temperature compensation.

  • Designed for: Board mount applications
  • Standard Package: 50
  • Output: I2C output of 12 b
  • Accuracy: ±0.25%
  • Operating Pressure: 100PSI (689.48kPa)
  • Maximum Pressure: 250PSI (1723.69kPa)
  • Voltage Supply: 4.75V ~ 5.25V
  • Port Size: Male - 0.19" (4.93mm) tube
  • Ideal for: Use in pressure sensing applications that require high accuracy and reliability
