Same model may have multiple batches, images only for reference.

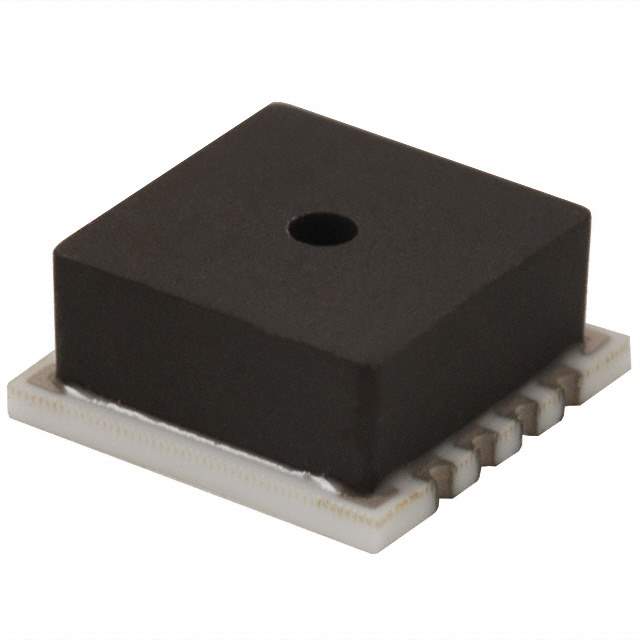

SX15GSMT Real Image
Same model may have multiple batches, images only for reference.

SX15GSMT

Part No SX15GSMT
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR GAUGE 0-15PSIG SMT / Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 112.5 mV (5V) 8-SMD Module
Datasheet
SX15GSMT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SX SMT
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 112.5 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Style No Port
Termination Style SMD (SMT) Tab
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case 8-SMD Module
Other Names 480-2678-5,SX15GMST,Q1464677,SX15GSMTR,SX15GSMT,SX15GMST
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234770-SX15GSMT
Ultra Librarian 3D Model Ultra Librarian SX15GSMT CAD Model

Description

The Honeywell SX SMT Pressure Sensor is a board mount device with an 8-SMD module package.

  • Voltage Supply: 12V
  • Output: 0mV to 112.5mV
  • Accuracy: ±0.5%
  • Operating Pressure: 15PSI
  • Package: Tube
  • Operating Temperature: -40°C to 125°C
  • Package: 8-SMD Module
