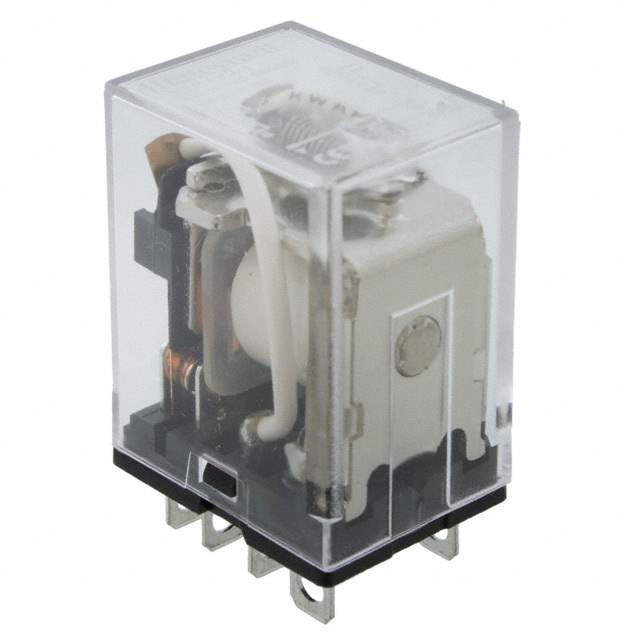

SZR-LY2-1-AC24V Real Image
Same model may have multiple batches, images only for reference.

SZR-LY2-1-AC24V

Part No SZR-LY2-1-AC24V
Manufacturer Honeywell
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 24V / General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Honeywell Sensing and Productivity Solutions
Series SZR-LY
Package Bulk
Mounting Type Socketable
Coil Voltage 24VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 46 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 18 VAC
Must Release Voltage 7.2 VAC
Operate Time 25 ms
Release Time 25 ms
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 180 Ohms
Base Product Number SZR-LY2
Other Names 2266-SZR-LY2-1-AC24V,SZR-LY2-1-AC24V,480-5211,SZRLY21AC24V
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1237322-SZR-LY2-1-AC24V
Ultra Librarian 3D Model Ultra Librarian SZR-LY2-1-AC24V CAD Model

Description

The SZR-LY2-1-AC24V power relay from Honeywell Sensing and Productivity Solutions is a highly reliable and durable relay designed for use in a wide range of applications.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 10 A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Coil Voltage: 24VAC
  • Coil Resistance: 180 Ohms
  • Termination Style: Plug-In
  • Mounting Type: Socketable
  • Package Quantity: 20
  • Operate Time: 25 ms
  • Relay Type: General Purpose
