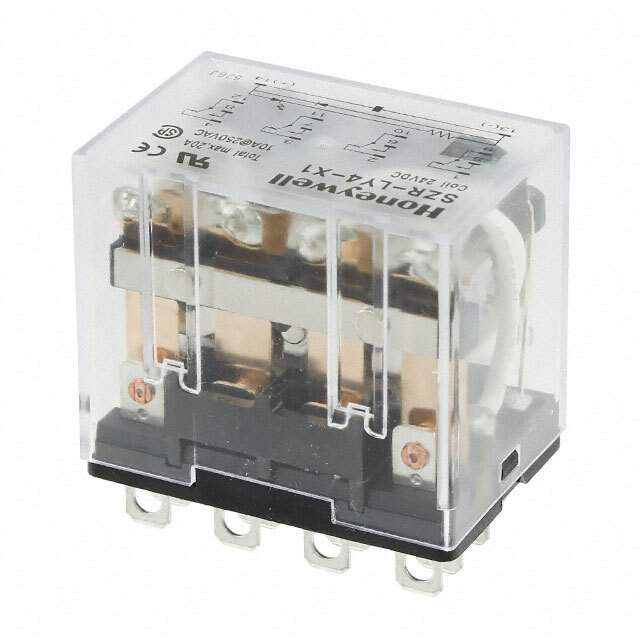

SZR-LY4-X1-DC24V Real Image
Same model may have multiple batches, images only for reference.

SZR-LY4-X1-DC24V

Part No SZR-LY4-X1-DC24V
Manufacturer Honeywell
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 24V / General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Honeywell Sensing and Productivity Solutions
Series SZR-LY
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 73 mA
Coil Type Non Latching
Features Diode, Lighted Indicator
Termination Style Plug In
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 25 ms
Release Time 25 ms
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 350 Ohms
Base Product Number SZR-LY4
Other Names 480-7014,SZR-LY4-X1-DC24V
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1237321-SZR-LY4-X1-DC24V
Ultra Librarian 3D Model Ultra Librarian SZR-LY4-X1-DC24V CAD Model

Description

The Honeywell Sensing and Productivity Solutions SZR-LY4-X1-DC24V is a 4PDT (4 Form C) power relay with a coil voltage of 24VDC and a coil resistance of 350 Ohms.

  • Contact Form: 4PDT (4 Form C)
  • Coil Voltage: 24VDC
  • Coil Resistance: 350 Ohms
  • Features: Diode and a Lighted Indicator
  • Switching Voltage: 250VAC and 125VDC - Max
  • Contact Rating (Current): 10 A
  • Release Time: 25 ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Mounting Type: Socketable
