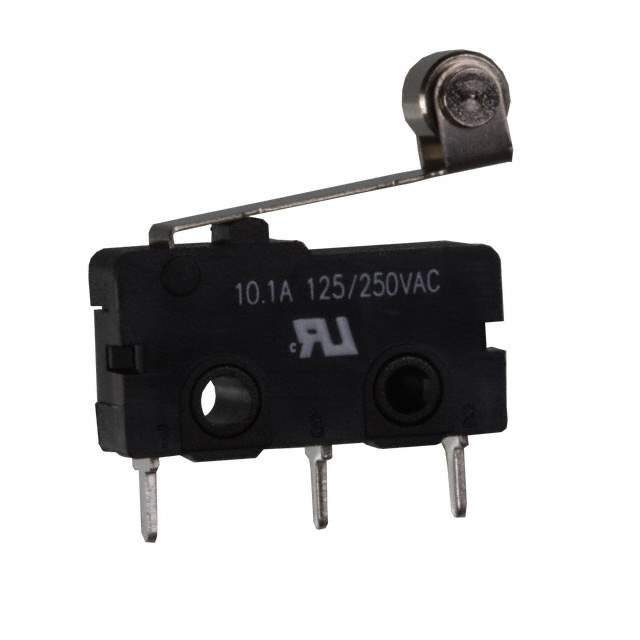

ZM90G20F01 Real Image
Same model may have multiple batches, images only for reference.

ZM90G20F01

Part No ZM90G20F01
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT Through Hole
Datasheet
ZM90G20F01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series ZM
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 59gf
Release Force 15gf
Pretravel 0.150" (3.8mm)
Differential Travel 0.030" (0.76mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -40°C ~ 120°C
Operating Position 0.689" (17.5mm)
Electrical Life 6,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number ZM90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 2266-ZM90G20F01,480-2351
Standard Package 1,000
Win Source Part Number 1106300-ZM90G20F01
Ultra Librarian 3D Model Ultra Librarian ZM90G20F01 CAD Model

Description

The Honeywell ZM90G20F01 limit switch is a high-quality electronic component designed for use in various applications.

  • Termination Style: PC Pin
  • Circuit Switch: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 125V AC
  • Current Rating: 10A (AC)
  • Mounting Type: Through-Hole
  • Operating Force: 59gf
