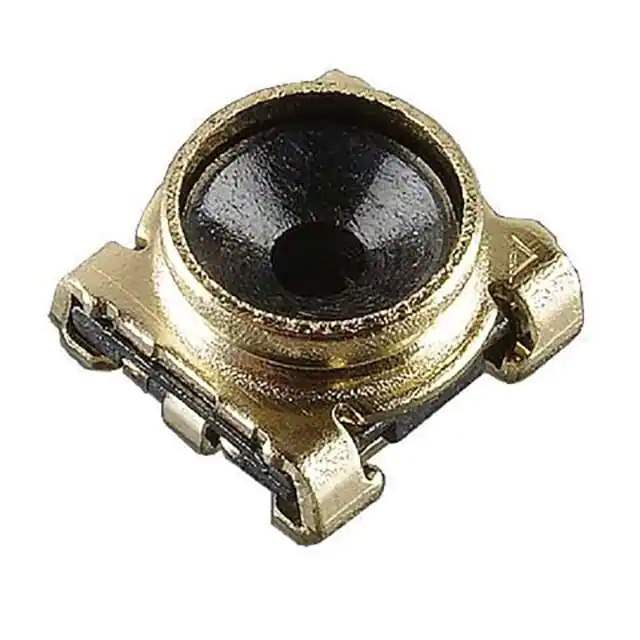

20549-001E Real Image
Same model may have multiple batches, images only for reference.

20549-001E

Part No 20549-001E
Manufacturer I-Pex
Catalog Coaxial Connectors (RF) - Assemblies
Description MHF SW23 RF SWITCH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr I-PEX
Series MHF® SW23
Package Tape & Reel
Product Status Active
Connector Style IPEX MHF SW23
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 11 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Phosphor Bronze
Body Material Phosphor Bronze
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 85°C
Mating Cycles 100
Base Product Number 20549
Standard Package 10,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 815007-20549-001E
Ultra Librarian 3D Model Ultra Librarian 20549-001E CAD Model

Description

The I-PEX MHF SW23 series coaxial connector assembly, part number 815007-20549-001E, is a receptacle with male pin connector type. It features a snap-on fastening type and is packaged in tape & reel.

  • Contact termination: Solder
  • Connector style: IPEX MHF SW23
  • Maximum frequency: 11 GHz
  • Housing color: Gold
  • Ports: 1
  • Body material: Phosphor bronze
  • Body finish: Gold
  • Center contact material: Phosphor bronze with gold plating
  • Dielectric material: Liquid crystal polymer (LCP)
  • Mating cycle: 100
  • Temperature range: -40°C to 85°C
