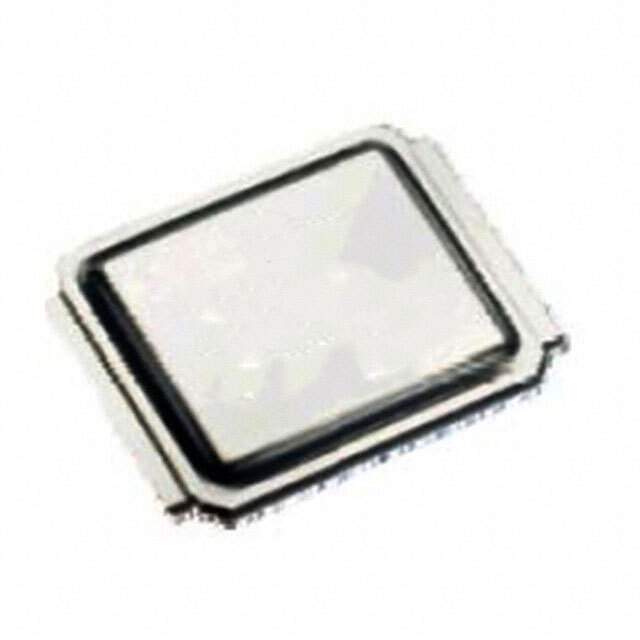

Same model may have multiple batches, images only for reference.

AUIRF7648M2TR

Name: AUIRF7648M2TR
Brand: Infineon Technologies
SKU: 1047083
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	AUIRF7648M2TR
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 14A DIRECTFET / N-Channel 60 V 14A (Ta), 68A (Tc) 2.5W (Ta), 63W (Tc) Surface Mount DirectFET™ Isometric M4
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	HEXFET®
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 41A, 10V
Vgs(th) (Max) @ Id	4.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2170 pF @ 25 V
Power Dissipation (Max)	2.5W (Ta), 63W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	DirectFET™ Isometric M4
Package / Case	DirectFET™ Isometric M4
Base Product Number	AUIRF7648
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SP001521562,2156-AUIRF7648M2TR,448-AUIRF7648M2TR,448-AUIRF7648M2CT,448-AUIRF7648M2TRCT,448-AUIRF7648M2CT-ND,448-AUIRF7648M2DKR,INFIRFAUIRF7648M2TR,AUIRF7648M2TR-ND,448-AUIRF7648M2DKR-ND,448-AUIRF7648M2TRDKR
Standard Package	4,800
Win Source Part Number	1047083-AUIRF7648M2TR
Ultra Librarian 3D Model	Ultra Librarian AUIRF7648M2TR CAD Model

Alternative Products

Description

The AUIRF7648M2TR is an N-channel MOSFET from Infineon Technologies.

Applications: power supplies, motor control, and lighting
Maximum power dissipation: 2.5W @ Ta and 63W @ Tc
On-resistance: 7mOhm @ 41A and 10V
Package: DirectFET™ Isometric M4
Drain-source voltage: 60V
Gate charge: 53nC @ 10V
Input capacitance: 2170pF @ 25V
