Same model may have multiple batches, images only for reference.

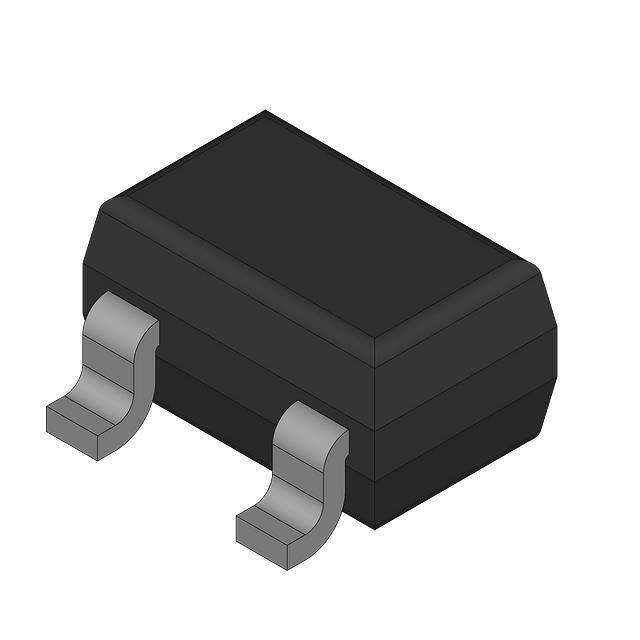

BAT5405WH6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BAT5405WH6327XTSA1

Part No BAT5405WH6327XTSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323 / Diode Array 1 Pair Common Cathode Schottky 30 V 200mA (DC) Surface Mount SC-70, SOT-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Infineon Technologies
Package Tape & Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Package / Case SC-70, SOT-323
Supplier Device Package PG-SOT323
Base Product Number BAT5405
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names BAT 54-05W H6327,BAT5405WH6327XTSA1TR,448-BAT5405WH6327XTSA1CT,INFINFBAT5405WH6327XTSA1,BAT5405WH6327XTSA1TR-ND,2156-BAT5405WH6327XTSA1,SP000749832,448-BAT5405WH6327XTSA1TR,BAT 54-05W H6327-ND,448-BAT5405WH6327XTSA1DKR
Standard Package 3,000
Win Source Part Number 1048233-BAT5405WH6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BAT5405WH6327XTSA1 CAD Model

Description

The BAT5405WH6327XTSA1 is a diode array that belongs to the category of discrete semiconductor products.

  • Diode Type: Schottky diode
  • Voltage Rating: 30V
  • Maximum Forward Voltage: 800mV @ 100mA
  • Applications: Designed for small signal applications
  • Reverse Recovery Time: 5ns
  • Manufacturer: Infineon Technologies
  • Supply: currently in limited supply
  • Package: tape and reel package
  • Standard Package: 3,000
  • Description: a reliable and cost-effective option for various electronic projects.
