The BGS22W2L10 from Infineon Technologies is a versatile SPDT (Single Pole Double Throw) RF switch designed for a wide range of wireless applications. It offers exceptional performance characteristics, making it suitable for demanding scenarios where signal integrity and efficiency are crucial.

Applications

• Cellular communication systems: Including GSM, UMTS, and LTE devices where antenna switching and signal routing are required.
• Wireless LAN (WLAN) devices: Such as routers, access points, and mobile devices using Wi-Fi standards like 802.11a/b/g/n/ac.
• Bluetooth devices: For switching between different antenna configurations or RF paths.
• GPS and GNSS receivers: For selecting the optimal antenna for satellite signal reception.
• IoT (Internet of Things) devices: Enabling efficient RF signal management in connected devices.

Features

• Low insertion loss: Minimizes signal attenuation, ensuring maximum power transfer.
• High isolation: Prevents signal leakage between RF paths, maintaining signal integrity.
• Fast switching speed: Enables rapid switching between RF paths, optimizing system performance.
• Small form factor: Compact design allows for easy integration into space-constrained applications.
• Single supply voltage: Simplifies power supply design and reduces component count.
• RoHS compliant: Environmentally friendly, adhering to Restriction of Hazardous Substances directives.

Benefits

• Improved system performance: Low insertion loss and high isolation contribute to enhanced signal quality and overall system performance.
• Extended battery life: Efficient switching reduces power consumption, extending the operational life of battery-powered devices.
• Reduced component count: Integrated design minimizes the need for external components, simplifying the design process and reducing BOM (Bill of Materials) costs.
• Increased design flexibility: Small form factor and versatile functionality enable flexible integration into a variety of applications.
• Enhanced reliability: Robust design ensures reliable operation in harsh environments.

Additional Details

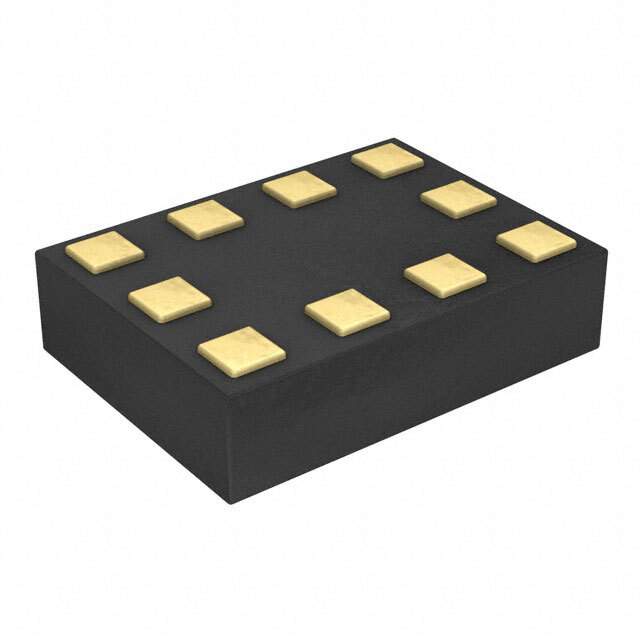

The BGS22W2L10 operates over a wide frequency range, typically from 0.1 GHz to several GHz, making it suitable for various wireless communication standards. It is typically controlled via a CMOS-compatible control interface. The device is housed in a small, surface-mount package, facilitating automated assembly and reducing manufacturing costs. Its low power consumption and high performance make it an ideal choice for modern wireless devices.
