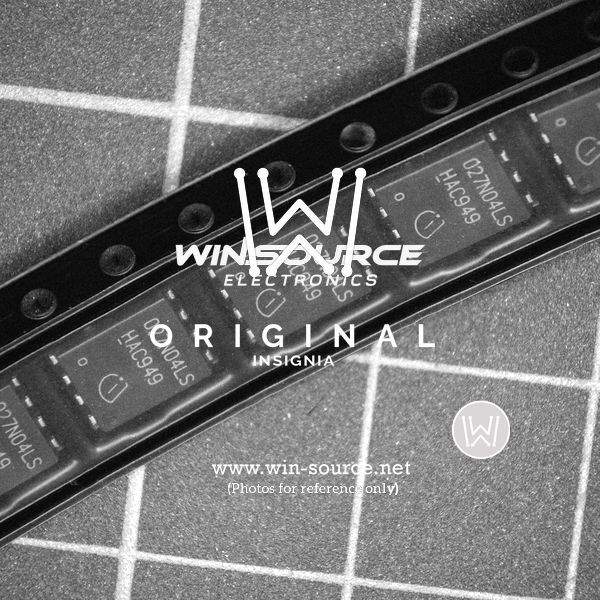

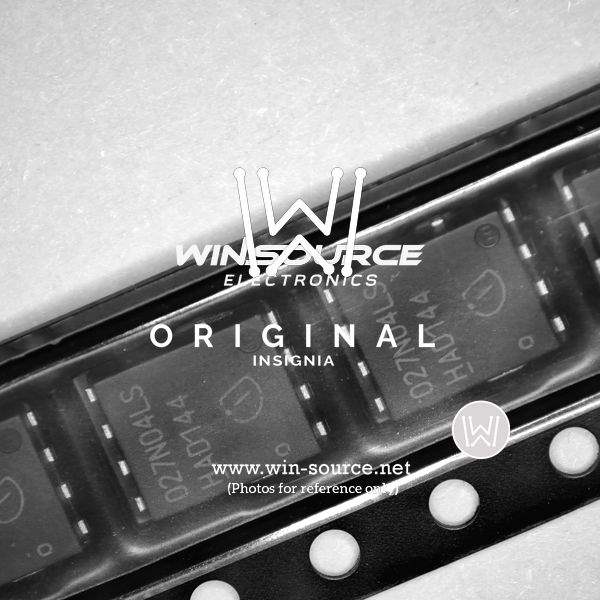

BSC027N04LSG Real Image BSC027N04LSG real image2712 BSC027N04LSG real image2713 BSC027N04LSG Real Image
Same model may have multiple batches, images only for reference.
BSC027N04LSG Real Image BSC027N04LSG real image2712 BSC027N04LSG real image2713 BSC027N04LSG Real Image
BSC027N04LSG Real Image BSC027N04LSG real image2712 BSC027N04LSG real image2713 BSC027N04LSG Real Image
Same model may have multiple batches, images only for reference.

BSC027N04LSG

Part No BSC027N04LSG
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 100A TDSON-8
Datasheet
BSC027N04LSG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 24A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 49μA
Max Gate Charge 85nC @ 10V
Max Input Capacitance 6800pF @ 20V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 83W (Tc)
Maximum Rds On at Id,Vgs 2.7 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 091910-BSC027N04LSG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BSC027N04LSG CAD Model

Description

The BSC027N04LSG is an advanced power MOSFET that balances power and efficiency perfectly. It is tailored for professionals seeking to innovate and improve power systems.

Key Features & Benefits:

  • Superior switching performance
  • Reduced gate charge
  • High efficiency in load management
  • Durable design for long-term use

Applications & Projects:

  • Solar inverter systems
  • Electric vehicle charging stations
  • Industrial power supplies

Additional Details:

The BSC027N04LSG MOSFET is geared towards heavy-duty applications that demand both efficiency and durability. It ensures minimal power loss and maximizes system reliability.
