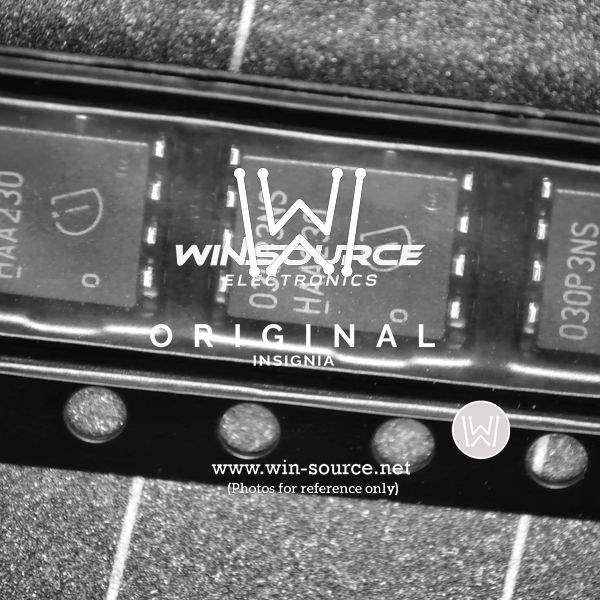

Same model may have multiple batches, images only for reference.

BSC030P03NS3 G

Name: BSC030P03NS3 G
Brand: Infineon Technologies
SKU: 439061
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	BSC030P03NS3 G
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET P-CH 30V 25.4A Automotive 8-Pin TDSON EP T/R / MOSFET P-CH 30V 100A TDSON-8
Datasheet	BSC030P03NS3 G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	25.4A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Gate-Source Threshold Voltage	3.1V @ 345μA
Max Gate Charge	186nC @ 10V
Max Input Capacitance	14000pF @ 15V
Maximum Gate-Source Voltage	±25V
Power Dissipation (Max)	2.5W (Ta), 125W (Tc)
Maximum Rds On at Id,Vgs	3 mOhm @ 50A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	PG-TDSON-8
Dimension	8-PowerTDFN
Win Source Part Number	1024327-BSC030P03NS3 G
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	BSC030P03NS3
Introduction Date	March 17, 2009
ECCN	EAR99
Country of Origin	China, Malaysia
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian BSC030P03NS3 G CAD Model

Alternative Products

Description

The Infineon BSC030P03NS3 G is a P-channel MOSFET.

Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 25.4A (Ta), 100A (Tc) @ 25°C
Package: PG-TDSON-8
Power Dissipation: 2.5W (Ta), 125W (Tc)
Gate-Source Threshold Voltage: 3.1V @ 345μA
Maximum Gate Charge: 186nC @ 10V
Maximum Rds On @ Id,Vgs: 3 mOhm @ 50A, 10V
Mounting Technology: SMD (SMT)
