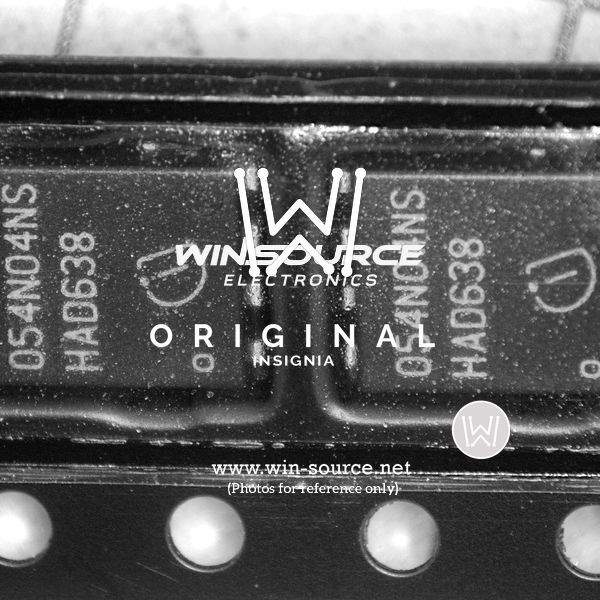

The BSC054N04NSG is a power MOSFET from Infineon Technologies, designed for high-efficiency power conversion in a variety of applications. This N-channel MOSFET utilizes Infineon's OptiMOS™ technology to achieve very low on-resistance (RDS(on)) and excellent switching performance, contributing to reduced power losses and improved system efficiency.

Applications:

• Synchronous rectification in AC-DC and DC-DC converters
• DC motor control
• Load switching
• Power management in computing and telecom systems
• Battery management systems

Features:

• OptiMOS™ technology: Provides very low RDS(on) for reduced conduction losses.
• Logic level drive: Allows direct drive from microcontrollers and logic devices.
• 100% Avalanche tested: Ensures robustness and reliability under inductive load switching conditions.
• Pb-free plating: Compliant with environmental regulations.
• Halogen-free mold compound: Further supports environmental responsibility.
• Very low QG and QGD: Minimizes switching losses.

Benefits:

• Increased system efficiency: Lower RDS(on) and switching losses contribute to higher overall efficiency.
• Simplified design: Logic level drive simplifies the gate drive circuitry.
• Improved reliability: Avalanche testing and robust design ensure reliable operation.
• Reduced heat dissipation: Lower losses result in less heat generation, simplifying thermal management.
• Environmentally friendly: Pb-free and halogen-free materials support green initiatives.

Additional Details:

The BSC054N04NSG has a drain-source voltage (VDS) rating of 40V and a continuous drain current (ID) rating that depends on the specific application and thermal conditions. It is typically supplied in a PG-TDSON-8 package, offering excellent thermal performance and compact size. The low gate charge (Qg) and gate-drain charge (Qgd) contribute to fast switching speeds and reduced switching losses. This MOSFET is well-suited for demanding applications requiring high efficiency and reliability.
