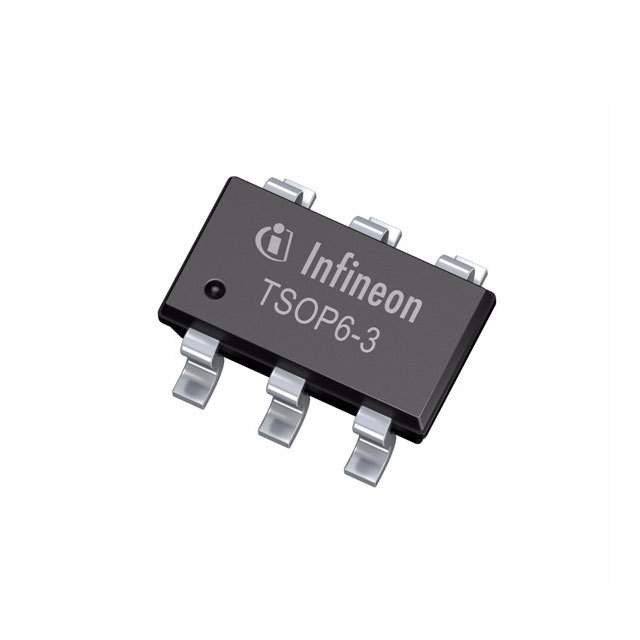

BSL308CH6327XTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BSL308CH6327XTSA1

Part No BSL308CH6327XTSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 30V 2.3A/2A 6TSOP
Datasheet
BSL308CH6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
FET Type N and P-Channel Complementary
FET Feature Logic Level Gate, 4.5V Drive
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 2.3A, 2A
Maximum Rds On at Id,Vgs 57 mOhm @ 2.3A, 10V
Gate-Source Threshold Voltage 2V @ 11μA
Max Gate Charge 1.5nC @ 10V
Max Input Capacitance 275pF @ 15V
Maximum Power Dissipation 500mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TSOP6-6
Win Source Part Number 1024392-BSL308CH6327XTSA1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BSL308CH6327XTSA1 CAD Model

Description

The Infineon Technologies BSL308CH6327XTSA1 is a discrete semiconductor product in the N and P-Channel Complementary FET technology category.

  • Status: active
  • Supply and Demand Status: sufficient
  • Mounting: SMD (SMT)
  • Package: PG-TSOP6-6
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 2.3A, 2A
  • Gate-Source Threshold Voltage: 2V @ 11μA
  • Maximum Gate Charge: 1.5nC @ 10V
  • Maximum Rds On @ Id,Vgs: 57 mOhm @ 2.3A, 10V
