The Infineon Technologies BSZ018NE2LSIATMA1 is an N-channel MOSFET transistor that has a drain-to-source voltage of 25V and is capable of continuous drain current of 22A and 40A (Tc) at 25°C.

• Manufacturer: Infineon Technologies
• Type: N-channel MOSFET transistor
• Drain-to-Source Voltage: 25V
• Continuous Drain Current @ 25°C: 22A and 40A (Tc)

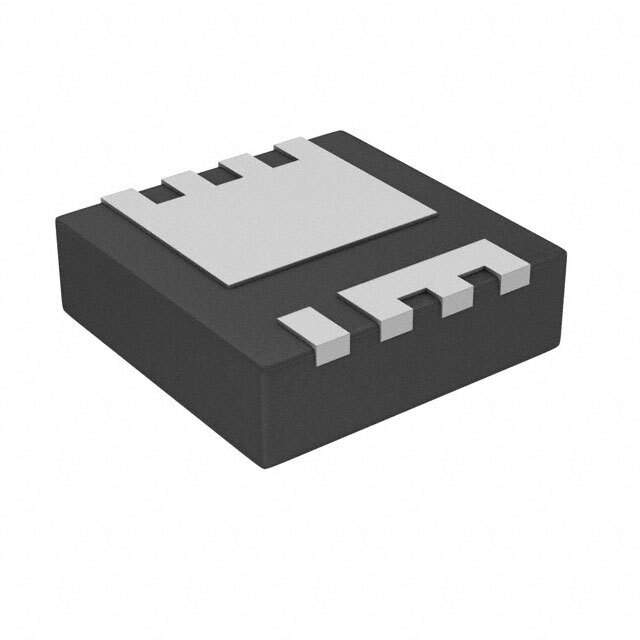

• Package: 8-PowerTDFN
• Supplier Device Package: PG-TSDSON-8-FL
• Rds On (Max) @ Id, Vgs: 1.8mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id: 2V @ 250µA
• Gate Charge: 36nC @ 10V
• Input Capacitance: 2500pF @ 12V
• Operating Temperature Range: -55°C ~ 150°C (TJ)
• Protection Features: Over current, over temperature, and short circuit
