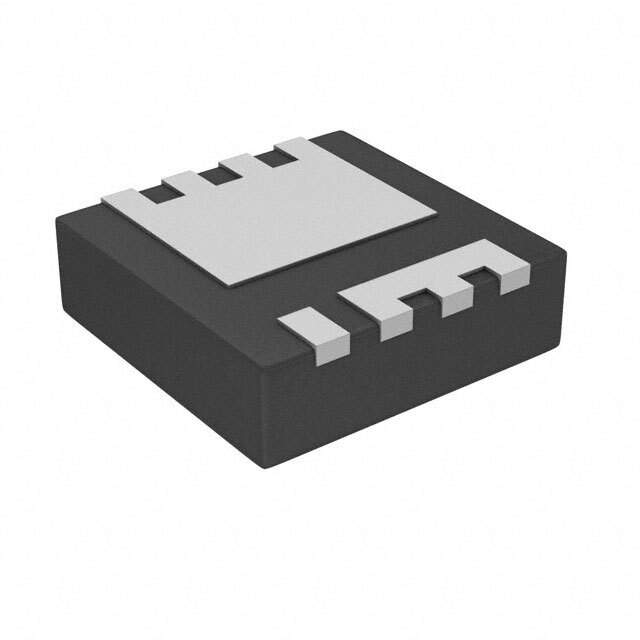

BSZ0902NSATMA1

Name: BSZ0902NSATMA1
Brand: Infineon Technologies
SKU: 1324331
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BSZ0902NSATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 19A/40A TSDSON / N-Channel 30 V 19A (Ta), 40A (Tc) 2.1W (Ta), 48W (Tc) Surface Mount PG-TSDSON-8-FL
Datasheet	BSZ0902NSATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Infineon Technologies
Packaging	Reel - TR
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	19A, 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	26 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1700 pF @ 15 V
Power Dissipation (Max)	2.1W, 48W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	PG-TSDSON-8-FL
Case / Package	8-PowerTDFN
Base Product Number	BSZ0902
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	BSZ0902NS,BSZ0902NS-ND,BSZ0902NSDKR-ND,SP000854386,BSZ0902NSATMA1CT,INFINFBSZ0902NSATMA1,BSZ0902NSCT,BSZ0902NSATMA1DKR,BSZ0902NSDKR,BSZ0902NSTR-ND,BSZ0902NSATMA1TR,BSZ0902NSCT-ND,2156-BSZ0902NSATMA1
Standard Package	5,000
Win Source Part Number	1324331-BSZ0902NSATMA1
Ultra Librarian 3D Model	Ultra Librarian BSZ0902NSATMA1 CAD Model

Alternative Products

Description

The Infineon Technologies 1324331-BSZ0902NSATMA1 is a surface-mount MOSFET transistor.

Type: Single N-channel
Maximum Drain to Source Voltage: 30V
Continuous Drain Current: 19A @ 25°C
Maximum Rds On: 2.6mOhm @ 20A and 10V Vgs
Gate Threshold Voltage: 2V @ 250μA
Maximum Power Dissipation: 2.1W and 48W @ Tc
Package: PG-TSDSON-8-FL package
Temperature Range: -55°C to 150°C
Compliance: ROHS3
