The BTS5200-4EKA is a quad high-side power switch from Infineon Technologies, belonging to the PROFET™+ family. It is designed for a broad range of automotive applications where multiple loads need to be controlled with robust protection and diagnostics.

Applications

• Automotive Lighting: Controlling multiple lighting functions such as headlights, taillights, turn signals, and interior lighting.
• Body Control Modules (BCM): Used to power and control various body-related functions including door locks, window lifters, and seat adjustments.
• Windshield Wiper Systems: For controlling wiper motors and associated functions.
• Automotive Heating, Ventilation, and Air Conditioning (HVAC) Systems: Controls blower motors and other HVAC components.

Features

• Quad High-Side Switch: Allows independent control of up to four separate loads.
• Overload Protection: Protects the switch and connected loads from excessive current draw.
• Short-Circuit Protection: Quickly shuts down the switch in the event of a short circuit.
• Overtemperature Protection: Disables the switch if the temperature exceeds a safe level.
• Diagnostic Feedback: Provides status information (e.g., overload, short-circuit detection) to the host controller.
• Current Limitation: Limits the current to a safe level during overload conditions.

Benefits

• Increased System Reliability: Comprehensive protection features ensure reliable operation.
• Simplified Design: Integration and high-side switching simplify system design and reduce component count.
• Enhanced Safety: Short-circuit and overtemperature protection enhance safety by preventing potential hazards.
• Reduced Downtime: Diagnostic feedback enables quick fault identification and resolution.

Additional Details

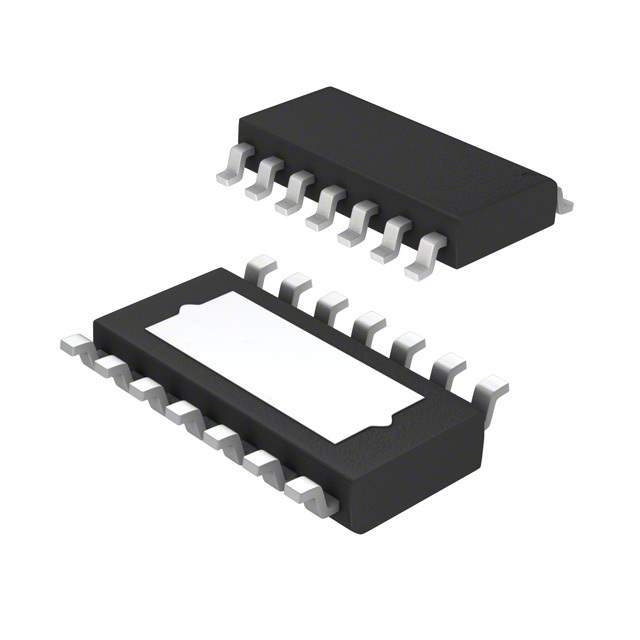

The BTS5200-4EKA features low on-resistance for reduced power dissipation. It is designed to operate within a wide voltage range and withstand harsh automotive environments. It typically comes in a PG-DSO-14 package and is AEC-Q100 qualified.
