Same model may have multiple batches, images only for reference.

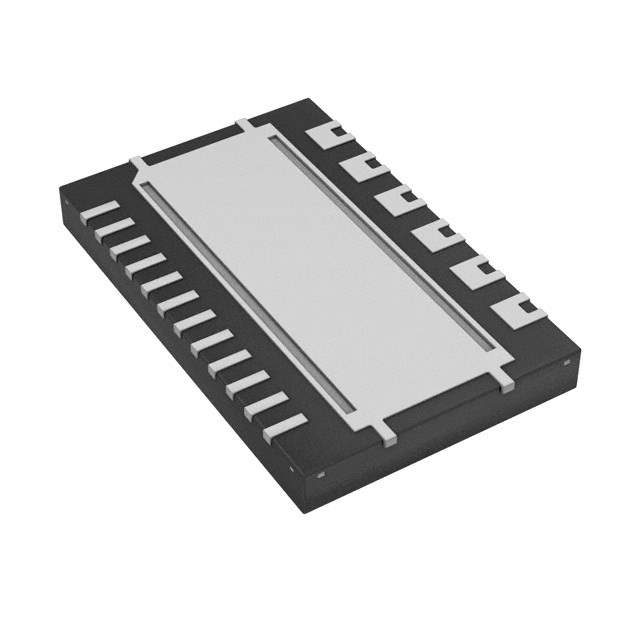

BTS54040LBEAUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTS54040LBEAUMA1

Part No BTS54040LBEAUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH HISIDE PG-TSON-24
Datasheet
BTS54040LBEAUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Switch Type General Purpose
Number of Outputs 4
Output Type N-Channel
Voltage - Load 5.5 V to 28 V
Supply Voltage - Operating 3.8 V to 5.5 V
Current - Output (Max) 2A
Rds On (Typ) 39 mOhm
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TSON-24-3
Win Source Part Number 1024905-BTS54040LBEAUMA1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian BTS54040LBEAUMA1 CAD Model

Description

The Infineon Technologies 1024905-BTS54040LBEAUMA1 is an integrated circuit that is designed for use in general-purpose switch applications.

  • Outputs: Four
  • Package: TSON-24-3
  • Output Type: N-Channel
  • Switch Type: General-Purpose
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Current-Output Maximum: 2A
  • Voltage Load: 5.5 V to 28 V
  • Rds On (Typ): 39 mOhm
  • Supply and Demand Status: Balanced
  • Quantity per Package: 2,500
