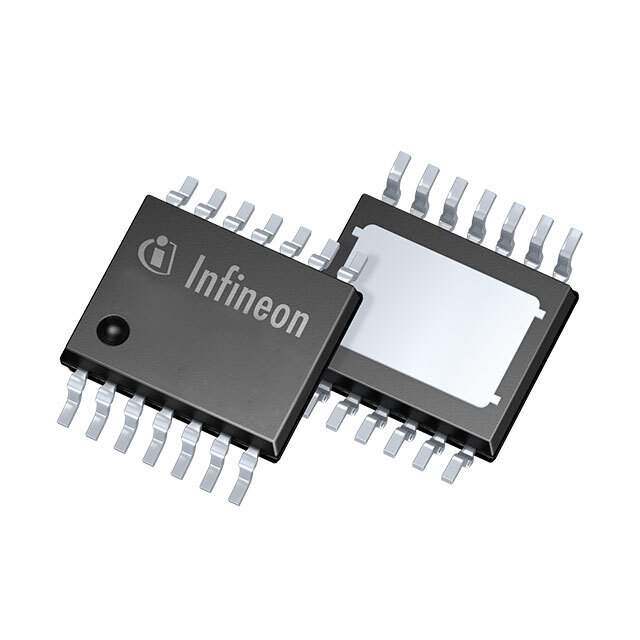

BTS70802EPAXUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTS70802EPAXUMA1

Part No BTS70802EPAXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWTCH N-CHAN 1:1 TSDSO-14  /  Power Switch/Driver 1:1 N-Channel 3A PG-TSDSO-14-22
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, PROFET®
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 6V ~ 18V
Supply Voltage - Operating Not Required
Current - Output (Max) 3A
Rds On (Typ) 23.1mOhm
Input Type Non-Inverting
Features Slew Rate Controlled
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TSDSO-14-22
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number BTS70802
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001225136,BTS70802EPAXUMA1DKR,BTS7080-2EPA,BTS70802EPAXUMA1-ND,BTS70802EPAXUMA1CT,BTS70802EPAXUMA1TR
Standard Package 3,000
Win Source Part Number 1126691-BTS70802EPAXUMA1
Ultra Librarian 3D Model Ultra Librarian BTS70802EPAXUMA1 CAD Model

Description

The Infineon Technologies BTS70802EPAXUMA1 is a general-purpose power distribution switch integrated circuit (IC) with a slew rate controlled feature.

  • Voltage - Load: 6V ~ 18V
  • Current - Output (Max): 3A
  • Standard Package: 3,000
  • Package Type: Tape & Reel
  • Temperature Range: -40°C ~ 150°C (TJ)
  • Rds On (Typ): 23.1mOhm
  • MSL Level: 2A (4 Weeks)
