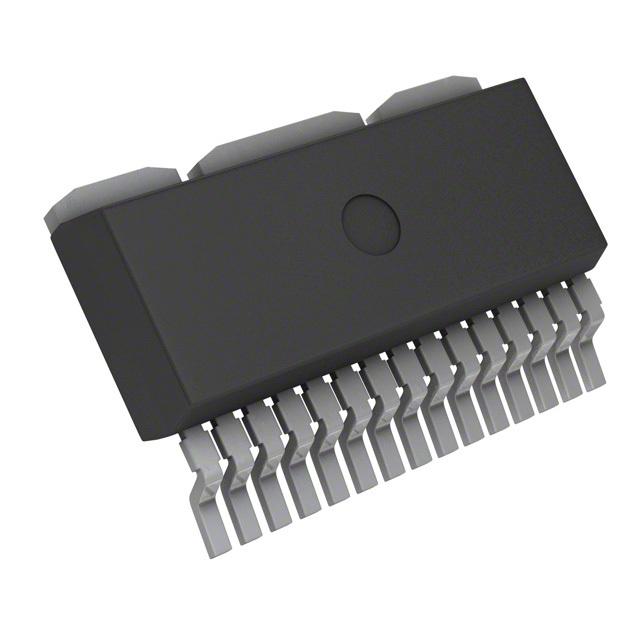

BTS7810K Infineon Technologies
Same model may have multiple batches, images only for reference.

BTS7810K

Part No BTS7810K
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC BRIDGE DRIVER PAR TO263-15
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Applications DC Motors, General Purpose
Load Type Inductive
Technology DMOS
Rds On (Typ) 14 mOhm LS, 26 mOhm HS
Current - Peak Output 42A
Supply Voltage - Operating 1.8 V to 42 V
Voltage - Load 1.8 V to 42 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Status Flag
Fault Protection Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting SMD (SMT)
Case / Package P-TO263-15
Win Source Part Number 201572-BTS7810K
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BTS7810K CAD Model

Description

BTS7810K Smart High-Side Switch

The BTS7810K is ideal for high-current applications requiring intelligent control and diagnostics. This device features high efficiency and reliability, making it suitable for demanding environments.

  • Applications:
    • Industrial motor control
    • Power distribution systems
    • Automotive HVAC systems
  • Features and Benefits:
    • Enhanced diagnostic capabilities
    • High load current of up to 58A
    • Low RDS(on) for efficient performance
  • Additional Details:
    • Protection against overload conditions
    • Designed for high-side load switching
