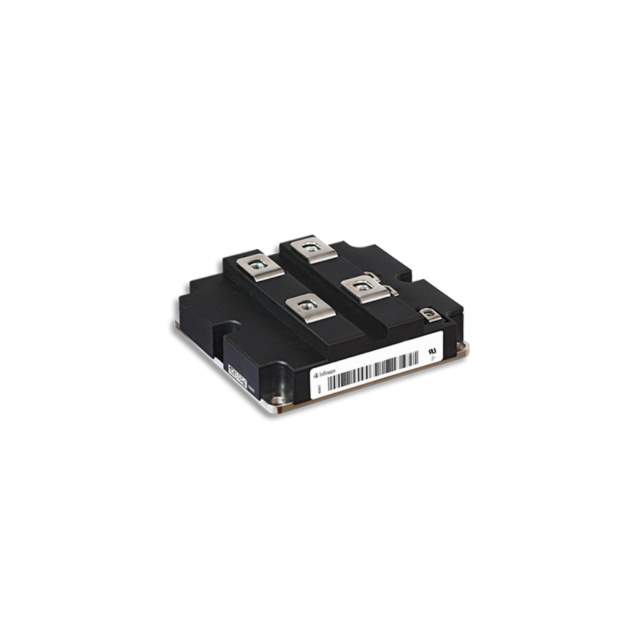

FD800R17KE3B2NOSA1 Real Image
Same model may have multiple batches, images only for reference.

FD800R17KE3B2NOSA1

Part No FD800R17KE3B2NOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE 1700V 800A / IGBT Module Single Chopper 1700 V 1200 A 5200 W Chassis Mount Module
Datasheet
FD800R17KE3B2NOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Infineon Technologies
Series IHM-B
Package Tray
Product Status Not For New Designs
Configuration Single Chopper
Voltage - Collector Emitter Breakdown (Max) 1700 V
Current - Collector (Ic) (Max) 1200 A
Power - Max 5200 W
Vce(on) (Max) @ Vge, Ic 2.45V @ 15V, 800A
Current - Collector Cutoff (Max) 5 mA
Input Capacitance (Cies) @ Vce 72 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FD800R17
Standard Package 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1349881-FD800R17KE3B2NOSA1
Ultra Librarian 3D Model Ultra Librarian FD800R17KE3B2NOSA1 CAD Model

Description

The FD800R17KE3B2NOSA1 is a single chopper IGBT module that belongs to the IHM-B series of Infineon Technologies.

  • Power (Max): 5200 W
  • Mounting Type: Standard Input and Chassis Mounting
  • Voltage Collector-Emitter Breakdown: 1700 V
  • Collector Cutoff Current (Max): 5 mA
  • Package / Case: Module
  • Supplier Device Package: Module
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • ECCN: EAR99
  • Lifecycle Status: Not For New Designs
  • Current Collector (Ic) (Max): 1200 A
  • Vce(on) (Max) @ Vge, Ic: 2.45V @ 15V, 800A
  • Input Capacitance (Cies) @ Vce: 72 nF @ 25 V
