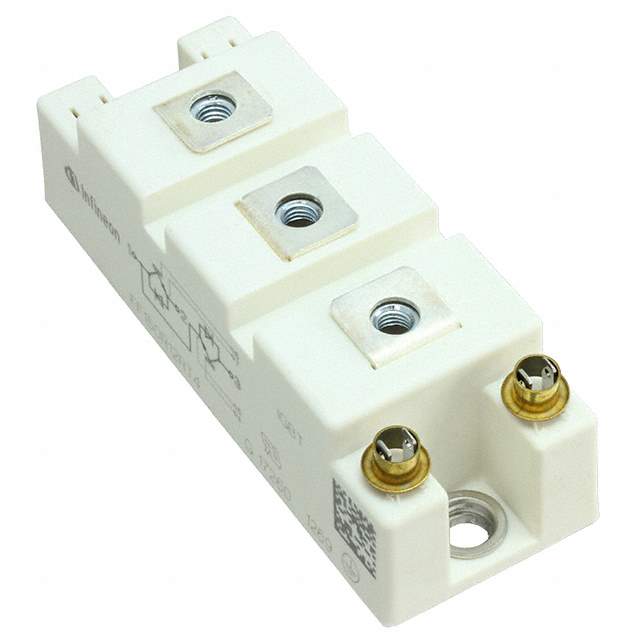

The FF150R12RT4 is an IGBT module from Infineon Technologies, designed for use in a variety of power electronics applications. This module offers efficient and reliable performance in demanding environments. It's known for its robust construction and suitability for applications requiring high power and switching capabilities.

Applications:

• Inverter drives: Specifically, the module is used in inverters for controlling electric motors in industrial applications.
• UPS (Uninterruptible Power Supplies): It serves as a crucial component in UPS systems, ensuring continuous power supply during outages.
• Welding equipment: The IGBT module is used in welding machines to control the power delivered to the welding arc.
• Renewable energy systems: Including solar inverters and wind turbine converters, where efficient power conversion is essential.
• Power factor correction (PFC): Implemented in power supplies and other electronic devices to improve energy efficiency.

Features:

• IGBT4 chip technology: This provides low VCE(sat) and fast switching speeds, leading to reduced power losses.
• TRENCHSTOP™ technology: Enables optimal switching performance and robustness.
• Integrated temperature sensor: Allows for accurate temperature monitoring and protection.
• Low inductance design: Minimizes voltage overshoot during switching, enhancing reliability.
• High blocking voltage: Provides robust performance in high-voltage applications.
• Isolated baseplate: Simplifies thermal management and provides electrical isolation.

Benefits:

• High efficiency: Reduced power losses due to advanced IGBT technology.
• Improved system reliability: Robust design and integrated protection features.
• Simplified thermal management: Isolated baseplate allows for efficient heat dissipation.
• Reduced system cost: Optimized performance allows for smaller and more cost-effective system designs.
• Enhanced switching performance: Fast switching speeds and low inductance design.

Additional Details:

The FF150R12RT4 features a collector-emitter voltage (Vces) of 1200V and a collector current (Ic) of 150A. It is designed for operation at high switching frequencies. The module's compact size and weight make it easy to integrate into various systems. It's RoHS compliant, ensuring environmental friendliness.

The internal structure contains six IGBTs, configured in a three-phase bridge. This configuration is suited for inverter applications. The module's operating junction temperature range is typically -40°C to +150°C. The package type is a standard module outline for easy mounting.
