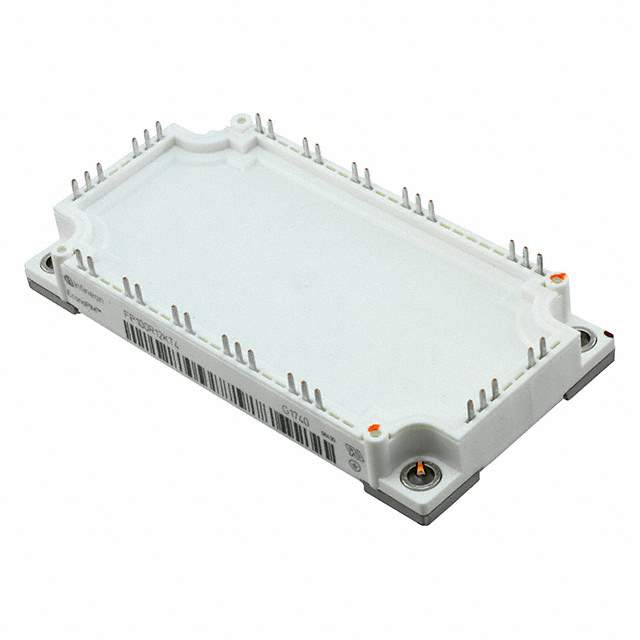

FP100R12KT4BOSA1 Real Image
Same model may have multiple batches, images only for reference.

FP100R12KT4BOSA1

Part No FP100R12KT4BOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 100A 515W  /  IGBT Module Trench Field Stop Three Phase Inverter 1200 V 100 A 515 W Chassis Mount Module
Datasheet
FP100R12KT4BOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series EconoPIM™ 3
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 100 A
Power - Max 515 W
Vce(on) (Max) @ Vge, Ic 2.2V @ 15V, 100A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 6.3 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FP100R12
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names FP100R12KT4-ND,SP000355578,FP100R12KT4
Standard Package 10
Win Source Part Number 1034222-FP100R12KT4BOSA1
Ultra Librarian 3D Model Ultra Librarian FP100R12KT4BOSA1 CAD Model

Description

The FP100R12KT4BOSA1 is a three-phase inverter IGBT module from Infineon Technologies.

  • Series: EconoPIM™ 3
  • Product Category: Discrete Semiconductor Products
  • Supply and Demand Status: Balanced
  • Voltage-Collector Emitter Breakdown: 1200V
  • Current Collector: 100A
