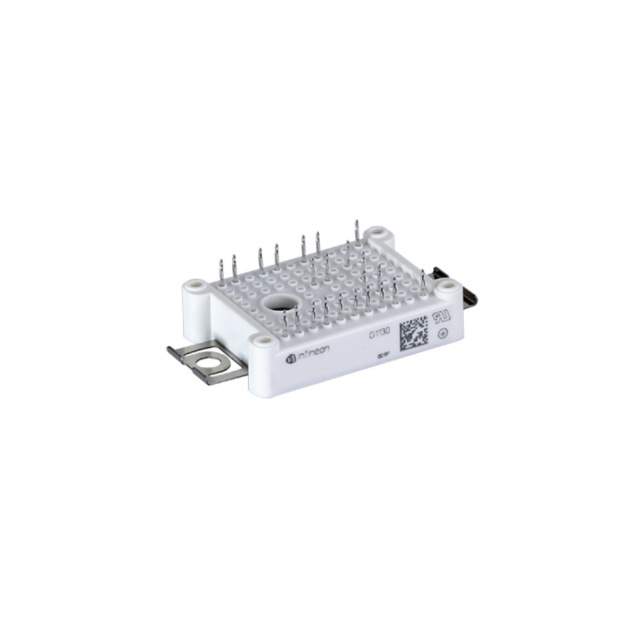

The FP15R12W1T4_B3 is an IGBT module from Infineon Technologies. IGBT (Insulated Gate Bipolar Transistor) modules combine the characteristics of MOSFETs and bipolar transistors, making them suitable for high-power switching applications. This particular module is designed for use in inverters, motor drives, and other applications requiring efficient and reliable power control.

Applications:

• Industrial motor drives
• Inverters for renewable energy systems (solar, wind)
• Uninterruptible power supplies (UPS)
• Welding equipment
• Induction heating

Features:

• High blocking voltage
• Low saturation voltage
• Fast switching speed
• Integrated temperature sensor
• Robust design

Benefits:

• High efficiency in power conversion
• Reduced power losses and heat generation
• Improved system reliability
• Simplified system design
• Precise temperature monitoring

Technical Specifications:

It's crucial to refer to the official Infineon datasheet for the FP15R12W1T4_B3 for accurate and detailed specifications, including:

• Collector-Emitter Voltage (Vces): 1200V
• Collector Current (Ic): 15A
• Gate-Emitter Voltage (Vges): ±20V
• Short-Circuit Withstand Time
• Switching Frequencies
• Thermal Resistance
• Package Information

The FP15R12W1T4_B3 IGBT module provides a robust and efficient solution for high-power switching needs. Consulting the datasheet is essential for ensuring proper application and safe operation.
