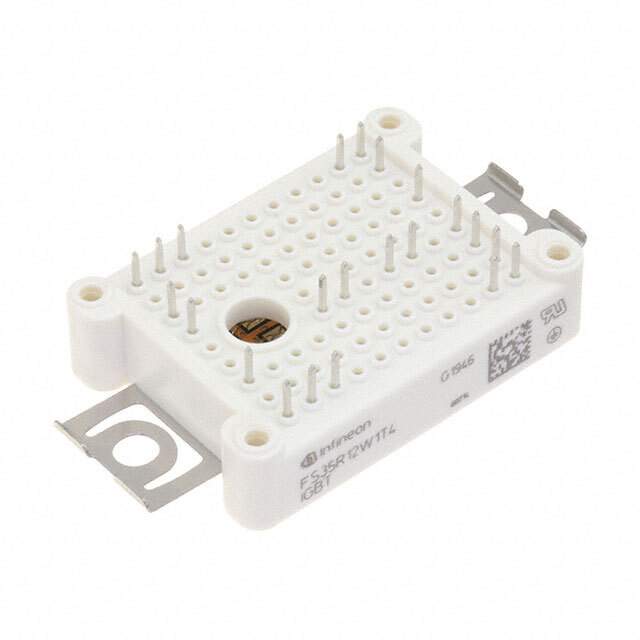

FS35R12W1T4BOMA1 Real Image
Same model may have multiple batches, images only for reference.

FS35R12W1T4BOMA1

Part No FS35R12W1T4BOMA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 65A 225W / IGBT Module Trench Field Stop Three Phase Inverter 1200 V 65 A 225 W Chassis Mount Module
Datasheet
FS35R12W1T4BOMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 65 A
Power - Max 225 W
Vce(on) (Max) @ Vge, Ic 2.25V @ 15V, 35A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 2 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FS35R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names FS35R12W1T4,SP000261235,FS35R12W1T4-ND
Standard Package 24
Win Source Part Number 1004797-FS35R12W1T4BOMA1
Ultra Librarian 3D Model Ultra Librarian FS35R12W1T4BOMA1 CAD Model

Description

The FS35R12W1T4BOMA1 is an electronic component manufactured by Infineon Technologies.

  • Type: Three-phase inverter IGBT module
  • Maximum Power: 225 W
  • IGBT Type: Trench field stop IGBT
  • Collector-Emitter Breakdown Voltage: 1200V
