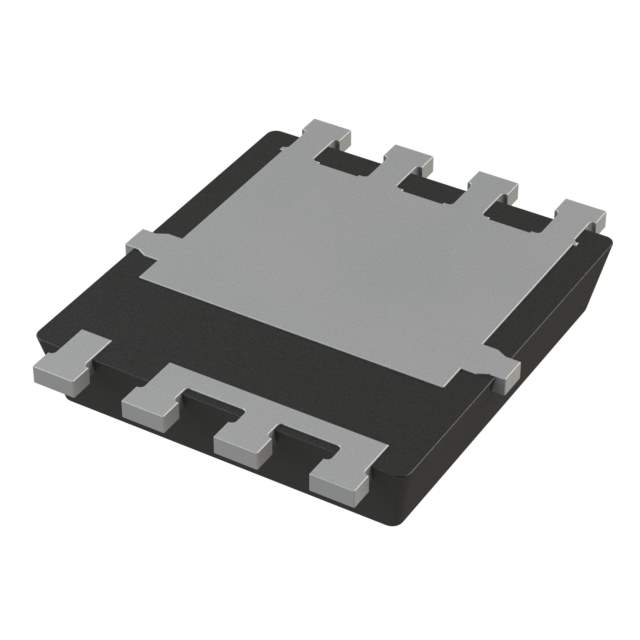

IAUC120N04S6L005ATMA1 Real Image
Same model may have multiple batches, images only for reference.

IAUC120N04S6L005ATMA1

Part No IAUC120N04S6L005ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
IAUC120N04S6L005ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 120A (Tj)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 0.55mOhm @ 60A, 10V
Vgs(th) (Max) @ Id 2V @ 130µA
Gate Charge (Qg) (Max) @ Vgs 177 nC @ 10 V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 11203 pF @ 25 V
Power Dissipation (Max) 187W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TDSON-8-53
Package / Case 8-PowerTDFN
Base Product Number IAUC120
Other Names 448-IAUC120N04S6L005ATMA1CT,448-IAUC120N04S6L005ATMA1DKR,SP001723538,448-IAUC120N04S6L005ATMA1TR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278382-IAUC120N04S6L005ATMA1
Ultra Librarian 3D Model Ultra Librarian IAUC120N04S6L005ATMA1 CAD Model

Description

The IAUC120N04S6L005ATMA1 is an Automotive, AEC-Q101, OptiMOS™ MOSFET from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Series: OptiMOS™
  • Application: Automotive, AEC-Q101
  • Drain to Source Voltage (Vdss): 40 V
  • Current - Continuous Drain (Id) @ 25°C: 120A (Tj)
  • Rds On (Max) @ Id, Vgs: 0.55mOhm @ 60A, 10V
  • Gate Charge (Qg) (Max) @ Vgs: 177 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 11203 pF @ 25 V
  • Mounting: SMD (SMT)
  • Package: 8-PowerTDFN
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Power Dissipation: 187W (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
