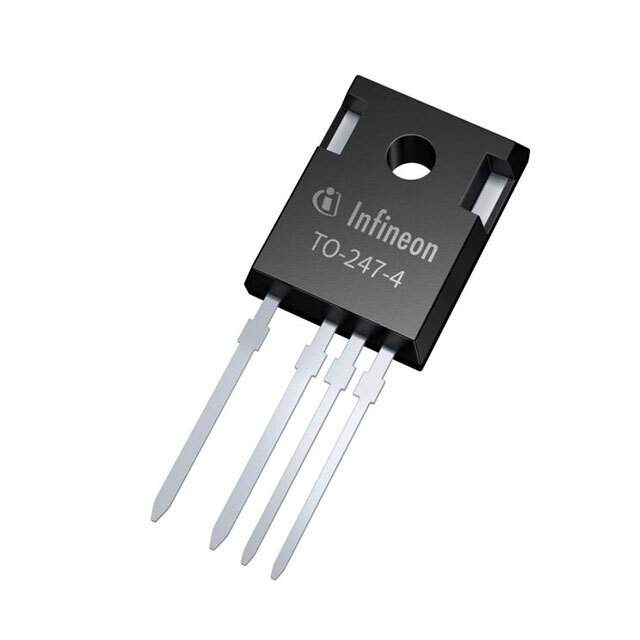

IMZA120R014M1HXKSA1 Real Image
Same model may have multiple batches, images only for reference.

IMZA120R014M1HXKSA1

Part No IMZA120R014M1HXKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description SIC DISCRETE / N-Channel 1200 V 127A (Tc) 455W (Tc) Through Hole PG-TO247-4-8
Datasheet
IMZA120R014M1HXKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series CoolSiC™
Package Tube
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 127A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V, 18V
Rds On (Max) @ Id, Vgs 18.4mOhm @ 54.3A, 18V
Vgs(th) (Max) @ Id 5.2V @ 23.4mA
Gate Charge (Qg) (Max) @ Vgs 110 nC @ 18 V
Vgs (Max) +20V, -5V
Input Capacitance (Ciss) (Max) @ Vds 4580 nF @ 25 V
Power Dissipation (Max) 455W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO247-4-8
Package / Case TO-247-4
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1338822-IMZA120R014M1HXKSA1
Ultra Librarian 3D Model Ultra Librarian IMZA120R014M1HXKSA1 CAD Model

Description

The CoolSiC™ SiCFET (Silicon Carbide) N-Channel FET is a high-performance electronic component that is designed to provide a drain to source voltage (Vdss) of 1200V.

  • FET Type: CoolSiC™ SiCFET (Silicon Carbide) N-Channel FET
  • Drain to Source Voltage (Vdss): 1200V
  • Maximum Power Dissipation: 455W (Tc)
  • Mounting Type: Through-Hole
  • Package/Case: TO-247-4
  • Supplier Device Package: PG-TO247-4-8
  • Drive Voltage (Max Rds On, Min Rds On): 15V, 18V
  • Temperature Range: -55°C to 175°C (TJ)
