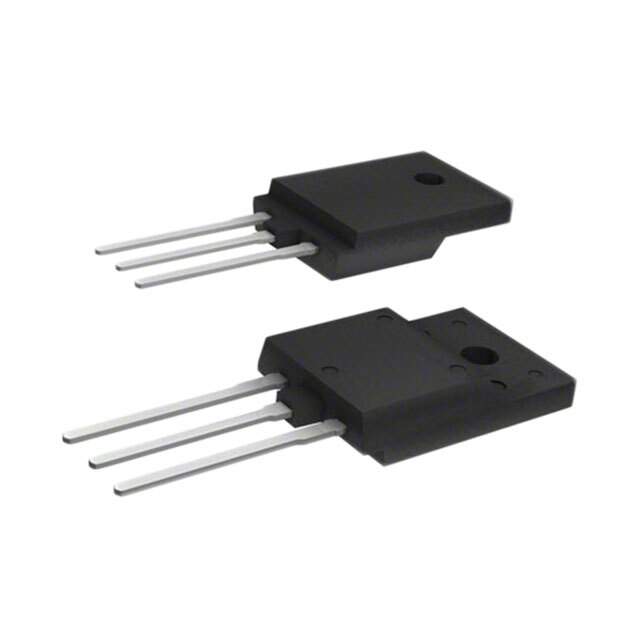

The Infineon Technologies IPA60R060C7XKSA1 is a high-performance MOSFET transistor with an N-channel FET type.

• FET Type: N-Channel
• Series: CoolMOS™ C7
• Package: TO-220-3 Full Pack
• Drain-to-Source Voltage (Vdss): 600 V
• Continuous Drain Current (Id): 16A (Tc) @ 25°C
• Maximum Power Dissipation: 34W (Tc)
• Maximum Rds On: 60mOhm @ 15.9A, 10V
• Gate Charge (Qg): 68 nC @ 10 V
• Input Capacitance (Ciss): 2850 pF @ 400 Vds
• Operating Temperature Range: -55°C to 150°C (TJ)
• Drive Voltage: ±20V for maximum Rds On and minimum Rds On.
