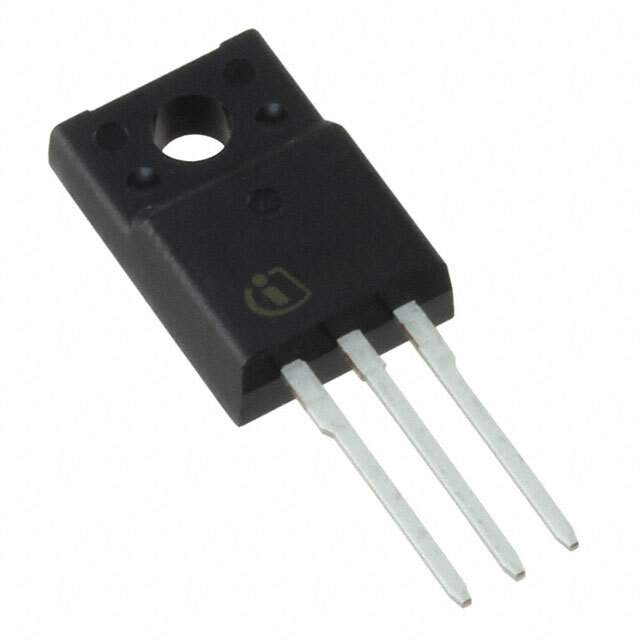

IPA80R1K2P7XKSA1 Real Image
Same model may have multiple batches, images only for reference.

IPA80R1K2P7XKSA1

Part No IPA80R1K2P7XKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 4.5A TO220
Datasheet
IPA80R1K2P7XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 25 Weeks
Features N-Channel 800 V 4.5A (Tc) 25W (Tc) Through Hole PG-TO220-3-FP
Manufacturer Infineon Technologies
Series CoolMOS™ P7
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package TO-220-3 Full Pack
Case / Package PG-TO220-3-FP
Family Name IPA80R1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 874654-IPA80R1K2P7XKSA1
Ultra Librarian 3D Model Ultra Librarian IPA80R1K2P7XKSA1 CAD Model

Description

The Infineon Technologies IPA80R1K2P7XKSA1 CoolMOS™ P7 is a high-performance, reliable N-channel device that is designed to operate in various applications.

  • Voltage: 800V
  • Current: 4.5A (Tc)
  • Power: 25W (Tc)
  • Package: Tube
  • Mounting: Through Hole
  • Family: IPA80R1
  • Category: Discrete Semiconductor Product
  • ECCN: EAR99
  • Popularity: Medium
  • Package Quantity: 50
  • Estimated Production Lead Time: 25 weeks
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.29.0095
