The 974314-IPB025N10N3GATMA1 is a discrete semiconductor product that falls under the category of transistors - FETs, MOSFETs - Single. It is a part of the OptiMOS™ series and is manufactured by Infineon Technologies.

• Packaging: Tape and Reel
• Standard Package: 5,000
• FET Type: N-Channel
• Drain to Source Voltage: 100 V
• Continuous Drain Current: 180A (Tc)
• Rds On (Max) @ Id, Vgs: 2.5mOhm @ 100A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 206 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 14800 pF @ 50 V
• Operating Temperature: -55°C ~ 175°C (TJ)

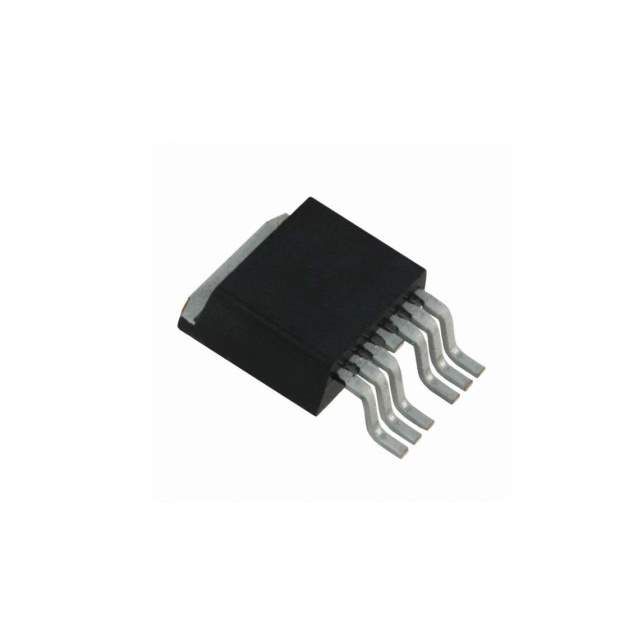

• Package: TO-263-7, D²Pak (6 Leads + Tab)
• Supplier Device Package: PG-TO263-7
• RoHS Compliant: Yes
• ECCN: EAR99
